Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019 2019-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

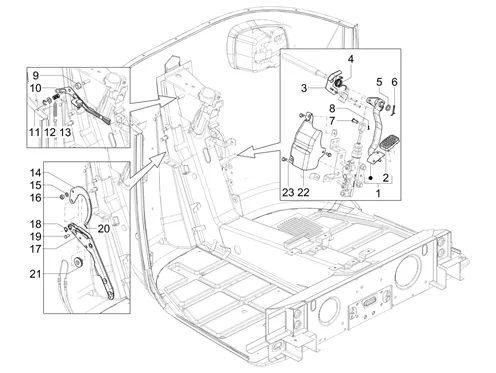

Instalation du freins - transmisisons : 05.05 GROUPE PÉDALES - LEVIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/991/Ape_Calessino_200_E4_Model_Year_2019_2019-2021_05.05_20251008083056.png)
1 |
B075492 PEDALE BRAKE More informationQuantity required : 1 |
||||||
|
2 |
567461 BUFFER More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
4 |
B073800 SPRING More informationQuantity required : 1 |
||||||
|
5 |
229524 WASHER More informationQuantity required : 1 |
||||||
|
6 |
568737 GOUPILLE More informationQuantity required : 1 |
||||||
|
7 |
652001 PIVOT More informationQuantity required : 1 |
||||||
|
8 |
567920 GOUPILLE More informationQuantity required : 1 |
||||||
|
9 |
108788 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
B076455 LEVER More informationQuantity required : 1 |
||||||
|
11 |
005969 CIRCLIPS S00596900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/4/img/63804.jpg)
12 |
WASHER PLATE (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-006173 More informationQuantity required : 1 |
||||||
|
13 |
108785 SPRING More informationQuantity required : 1 |
||||||
|
14 |
B042794R SECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
15 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
16 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
|
17 |
B075697 LEVER DU BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/1/img/63811.jpg)
18 |
CIRCLIPS SPROCKET DE KICK OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2011 >-006411 More informationQuantity required : 1 |
||||||
|
19 |
567899 PULLEY More informationQuantity required : 1 |
||||||
|
20 |
567920 GOUPILLE More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
|
22 |
B075949 PROTECTOR PUMP DE FREINAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/9/img/70429.jpg)
23 |
SCREW TH FLANGE (6X14) OEM PIAGGIO COMMON A LA RANGE-872425 More informationQuantity required : 3 |
||||||
|
24 |
B076036 TRANSMISSION More informationQuantity required : 1 |
