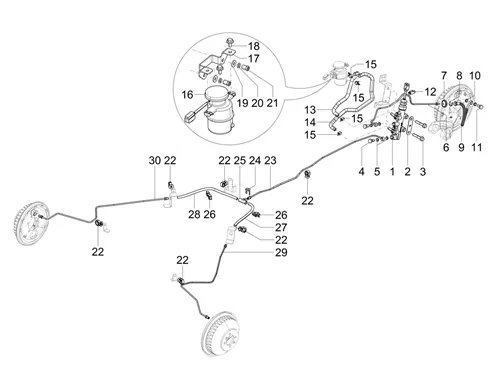

Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019 2019-2021 PIAGGIO VU

Instalation du freins - transmisisons : 05.04 SYSTÈME DE FREINAGE
Système de freinage
Search
B075485 - TUBE FLEXIBLE

1
P2R reference P2R reference 159360
Maker reference Maker reference B075485

B075485 TUBE FLEXIBLE

More information

Quantity required : 1

B075950 - TUYAU

2
P2R reference P2R reference 159361
Maker reference Maker reference B075950

B075950 HOSE

More information

Quantity required : 1

B074999 - BOULON

3
P2R reference P2R reference 159362
Maker reference Maker reference B074999

B074999 BOLT

More information

Quantity required : 2

661229 - BOULON

4
P2R reference P2R reference 159363
Maker reference Maker reference 661229

661229 BOLT

More information

Quantity required : 2

B076747 - JOINT

5
P2R reference P2R reference 159364
Maker reference Maker reference B076747

B076747 GASKET

More information

Quantity required : 4

B075490 - CANALISATION FREINS

6
P2R reference P2R reference 159365
Maker reference Maker reference B075490

B075490 CANALISATION FREINS

More information

Quantity required : 1

138237 - CAPUCHON

7
P2R reference P2R reference 109861
Maker reference Maker reference 138237

138237 CAPUCHON

More information

Quantity required : 1

WASHER PLATE (16. 2X24X1. 4) OEM PIAGGIO COMMON A LA RANGE-048197

8
P2R reference P2R reference 65654
Maker reference Maker reference 0481975

WASHER PLATE (16. 2X24X1. 4) OEM PIAGGIO COMMON A LA RANGE-048197

More information

Quantity required : 1

587624R - TUYAU FLEXIBLE DE FREIN AVANT

9
P2R reference P2R reference 176472
Maker reference Maker reference 587624R

HOSE/FLEXIBLE/HOSE OF BRAKE FRONT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2014 >-587624R

More information

Quantity required : 1

GASKET (10X14X1) CANALISATION ON FILTER A GAS-OIL OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2014 >-127927R

10
P2R reference P2R reference 110130
Maker reference Maker reference 127927R

GASKET (10X14X1) CANALISATION ON FILTER A GAS-OIL OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >, CLASSIC 2014 >-127927R

More information

Quantity required : 2

587829 - RACCORD

11
P2R reference P2R reference 110835
Maker reference Maker reference 587829

587829 FITTING

More information

Quantity required : 1

B076818 - COLLIER

12
P2R reference P2R reference 159366
Maker reference Maker reference B076818

B076818 CLAMP

More information

Quantity required : 1

15
P2R reference P2R reference
Maker reference Maker reference B0757005

TANK BRAKE FLUID OEM PIAGGIO PORTER 2010 > 2020, CARGO/THREE-WHEELER APE CALESSINO 2017 >-613319

16
P2R reference P2R reference 117181
Maker reference Maker reference 613319

TANK BRAKE FLUID OEM PIAGGIO PORTER 2010 > 2020, CARGO/THREE-WHEELER APE CALESSINO 2017 >-613319

More information

Quantity required : 1

9165160616000 - BOULON

18
P2R reference P2R reference 158602
Maker reference Maker reference 9165160616000

9165160616000 - BOULON

More information

Quantity required : 2

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

19
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

20
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 2

632056 - BOULON

21
P2R reference P2R reference 110273
Maker reference Maker reference 632056

632056 - BOULON

More information

Quantity required : 2

B076007 - PINCE DE RETENUE

22
P2R reference P2R reference 159367
Maker reference Maker reference B076007

B076007 PINCE DE RETENUE

More information

Quantity required : 6

B075491 - CANALISATION FREINS

23
P2R reference P2R reference 159368
Maker reference Maker reference B075491

B075491 CANALISATION FREINS

More information

Quantity required : 1

136916 - PLAQUE

24
P2R reference P2R reference 65734
Maker reference Maker reference 136916

136916-PLATE

More information

Quantity required : 1

643692 - CONNECTEUR 3 R.

25
P2R reference P2R reference 113459
Maker reference Maker reference 643692

643692 CONNECTEUR 3 R.

More information

Quantity required : 1

B075838 - PINCE DE RETENUE

26
P2R reference P2R reference 159369
Maker reference Maker reference B075838

B075838 PINCE DE RETENUE

More information

Quantity required : 4

644814R - CANALISATION FREINS

27
P2R reference P2R reference 159370
Maker reference Maker reference 644814R

644814R CANALISATION FREINS

More information

Quantity required : 1

B023786R - CANALISATION FREINS

28
P2R reference P2R reference 159371
Maker reference Maker reference B023786R

B023786R CANALISATION FREINS

More information

Quantity required : 1

B075836 - CANALISATION FREINS

29
P2R reference P2R reference 159372
Maker reference Maker reference B075836

B075836 CANALISATION FREINS

More information

Quantity required : 1

B075835 - CANALISATION FREINS

30
P2R reference P2R reference 159373
Maker reference Maker reference B075835

B075835 CANALISATION FREINS

More information

Quantity required : 1
