Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019 2019-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

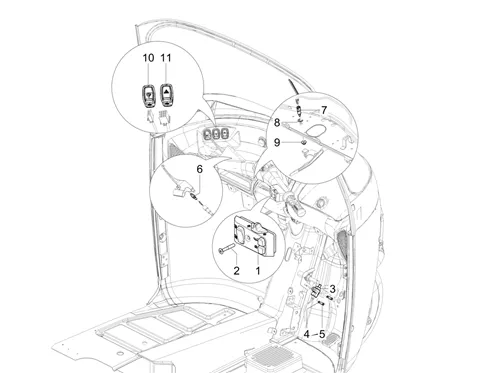

Circuit électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/991/Ape_Calessino_200_E4_Model_Year_2019_2019-2021_06.01_20251008083103.png)
1 |
B073850R INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/2/img/65432.jpg)
2 |
SCREW MOUNTING INTERRUPTEUR OEM PIAGGIO 125 PX VESPA/THREE-WHEELER APE CALESSINO, CLASSIC-018503 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/7/9/img/111479.jpg)
3 |
INTERRUPTEUR/BUTTON STOP OEM PIAGGIO THREE-WHEELER APE 50 2018 >, CALESSINO 2007 >, CLASSIC 2006 >-567498R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
4 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 2 |
||||||
|
5 |
B074568 TERMINAL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
6 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
7 |
640762-BUTTON More informationQuantity required : 1 |
||||||
|
8 |
005969 CIRCLIPS S00596900 More informationQuantity required : 1 |
||||||
|
9 |
B076448 BUSH EN RUBBER More informationQuantity required : 1 |
||||||
|
10 |
B076567 INTERRUPTEUR ESSUIS GLACE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/4/7/4/img/176474.jpg)
11 |
SWITCH/INTERRUPTEUR WARNING OEM PIAGGIO THREE-WHEELER APE CALESSINO 2017 >, CLASSIC 2017 >-B073481R More informationQuantity required : 1 |
