Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019 2019-2021 PIAGGIO VU

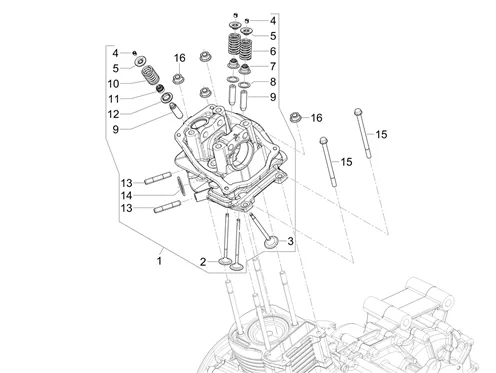

Moteur : 01.05 ENSEMBLE CULASSE - SOUPAPE
Ensemble culasse - Soupape
Search
1A012956 - CULASSE COMPLETE

1
P2R reference P2R reference 176442
Maker reference Maker reference 1A012956

SP1A012956 CYLINDER HEAD COMPLETE

More information

Quantity required : 1

B014684 - SOUPAPE ADMISSION ATD

2
P2R reference P2R reference 113430
Maker reference Maker reference B014684

B014684 VALVE INTAKE ATD

More information

Quantity required : 2

B017438 - SOUPAPE ECHAPPEMENT

3
P2R reference P2R reference 115551
Maker reference Maker reference B017438

B017438 VALVE EXHAUST

More information

Quantity required : 1

B015288 - SEMICONO

4
P2R reference P2R reference 109887
Maker reference Maker reference B015288

B015288 SEMICONO

More information

Quantity required : 6

B017456 - CUVETTE

5
P2R reference P2R reference 111042
Maker reference Maker reference B017456

B017456 CUVETTE

More information

Quantity required : 3

B014706 - MOLLA VALVOLA ASPIRAZI

6
P2R reference P2R reference 110417
Maker reference Maker reference B014706

B014706 MOLLA VALVOLA ASPIRAZI

More information

Quantity required : 1

GASKET OF VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC COOLING PER AIR-843307

7
P2R reference P2R reference 69276
Maker reference Maker reference 843307

GASKET OF VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC COOLING PER AIR-843307

More information

Quantity required : 2

1A012925 - RONDELLE PLATE

8
P2R reference P2R reference 176443
Maker reference Maker reference 1A012925

1A012925 WASHER PLATE

More information

Quantity required : 2

83055R - VALVE SEAT AND GUIDE GROUP

9
P2R reference P2R reference 159204
Maker reference Maker reference 83055R

83055R VALVE SEAT AND GUIDE GROUP

More information

Quantity required : 1

GASKET/BUSH ETANCHEITE VALVE OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >/125-160 SR, SXR APRILIA-201883054R

10
P2R reference P2R reference 111201
Maker reference Maker reference 83054R

GASKET/BUSH ETANCHEITE VALVE OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >/125-160 SR, SXR APRILIA-201883054R

More information

Quantity required : 1

B014705 - MOLLA VALVOLA SCARICO

11
P2R reference P2R reference 110613
Maker reference Maker reference B014705

B014705 MOLLA VALVOLA SCARICO

More information

Quantity required : 1

CUP LOWER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483711

12
P2R reference P2R reference 66639
Maker reference Maker reference 483711

CUP LOWER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483711

More information

Quantity required : 1

B016368 - GOUJON

13
P2R reference P2R reference 110056
Maker reference Maker reference B016368

B016368 STUD

More information

Quantity required : 2

GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC COOLING PER AIR-434716

14
P2R reference P2R reference 66458
Maker reference Maker reference 434716

GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC COOLING PER AIR-434716

More information

Quantity required : 1

B018854 - VIS

15
P2R reference P2R reference 110317
Maker reference Maker reference B018854

B018854 SCREW

More information

Quantity required : 2

NUT FLANGE (M8X1. 25) OEM PIAGGIO COMMON A LA RANGE-B016939

16
P2R reference P2R reference 159205
Maker reference Maker reference B016939

NUT FLANGE (M8X1. 25) OEM PIAGGIO COMMON A LA RANGE-B016939

More information

Quantity required : 4
