Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019 2019-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

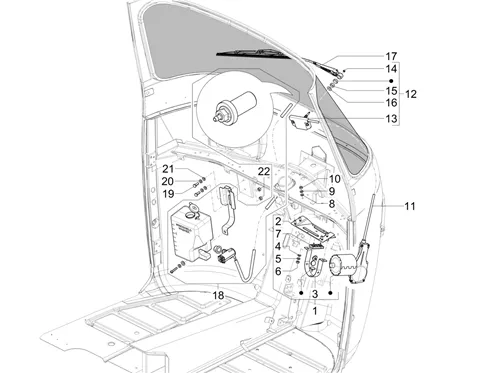

Circuit électrique : 06.08 ESSUIE-GLACES AVANT ET ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/991/Ape_Calessino_200_E4_Model_Year_2019_2019-2021_06.08_20251008083129.png)
1 |
632995 MOT. GLACE More informationQuantity required : 1 |
||||||
|
2 |
569166 BRACKET More informationQuantity required : 1 |
||||||
|
3 |
569177 BANDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
5 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
6 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
|
7 |
569178 PROTECTOR More informationQuantity required : 1 |
||||||
|
8 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 4 |
||||||
|
9 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 4 |
||||||
|
10 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 4 |
||||||
|
11 |
652445 HOSE More informationQuantity required : 1 |
||||||
|
11 |
652060 HOSE More informationQuantity required : 1 |
||||||
|
12 |
569197 WHEEL BOX ASSLY More informationQuantity required : 1 |
||||||
|
13 |
604522 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/0/0/img/110600.jpg)
14 |
NUT ESSUIE GLACE OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 >, CLASSIC 2006 > 2017-569165 More informationQuantity required : 1 |
||||||
|
15 |
857300-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/4/img/63804.jpg)
16 |
WASHER PLATE (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-006173 More informationQuantity required : 1 |
||||||
|
17 |
652003 ESSUIE-GLACE More informationQuantity required : 1 |
||||||
|
18 |
652077 WINDSHIELD WASHER TANK * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
19 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 2 |
||||||
|
20 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
|
21 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
|
22 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
