Vehicle Exploded View - PIAGGIO X8 200 2005-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

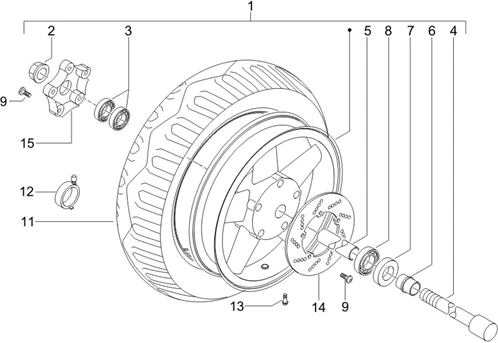

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/128/X8_200_2005-2007_04.11.PNG)
1 |
56374R - ROUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
2 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
3 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/4/img/67054.jpg)
4 |
564446 - AXE ROUE More informationQuantity required : 1 |
||||||
|
5 |
564447 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
564448 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
7 |
564489 - GODET More informationQuantity required : 1 |
||||||
|
8 |
649911 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
9 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 10 |
||||||
|
11 |
666381 - PNEU 120/70-14" MICHELIN CITY GRIP More informationQuantity required : 1 |
||||||
|
11 |
564980 - PNEU PIRELLI 120/70-14 55P TL GTS23 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/8/5/img/80085.jpg)
12 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 125-250-300 X7, 125-250-400 X8 -56446R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
13 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/9/img/67039.jpg)
14 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 125-250 X7 AV, X8 AV, X-EVO AV, 500 X9 AV, BEVERLY AV/GILERA 125-250-300-500 NEXUS AV -56393R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/4/6/img/82546.jpg)
15 |
FRONT WHEEL HUB COVER "PIAGGIO GENUINE PART" 125-250 X-EVO, X8, X7 -599423 More informationQuantity required : 1 |
