Vehicle Exploded View - PIAGGIO X8 200 2005-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

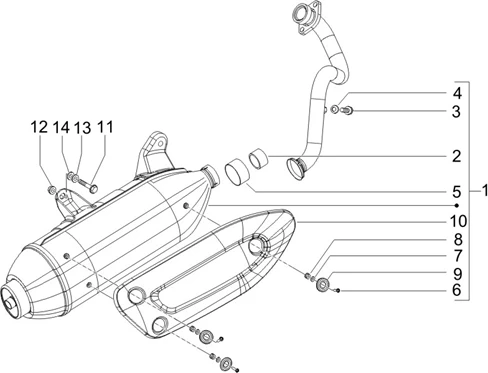

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/128/X8_200_2005-2007_01.42.PNG)
1 |
8435405 - POT ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
2 |
GRAPHITE BUSHING FOR SILENCER "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVOGILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
3 |
EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
4 |
EXHAUST WASHER Ø10,2XØ15X2 FOR ALL THE RANGE -016195 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/3/img/69333.jpg)
5 |
SILENCER CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 125-250-300 -8449404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
6 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
|
6 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
7 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
8 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/7/img/92917.jpg)
9 |
EXHAUST BUSHING/WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -834643 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/2/img/69232.jpg)
10 |
EXHAUST HEAT PROTECTION "PIAGGIO GENUINE PART" 125-250 MP3 2006>, X8 2004>, X9 2003>, X-EVO 2007>X7 2008>, BEVERLY 2005>/GILERA 250-300 NEXUS 2006> -842404 More informationQuantity required : 1 |
||||||
|
11 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
12 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
13 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
14 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 3 |
