Vehicle Exploded View - PIAGGIO X8 200 2005-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

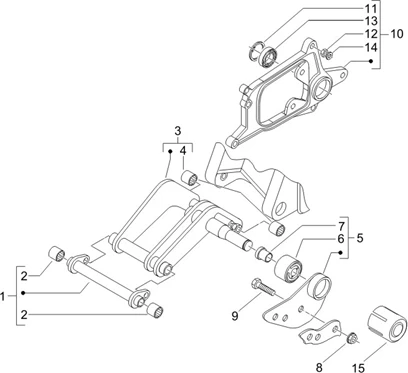

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/128/X8_200_2005-2007_04.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/4/img/67344.jpg)
1 |
SWINGING ARM "PIAGGIO GENUINE PART" 125-250 X8 2004>, X9 2005>, X-EVO 2007>, BEVERLY 2005>/GILERA 125-250-300 NEXUS 2007>, 250-300 SCARABEO-LIGHT -5975035 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
2 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/6/6/img/82566.jpg)
3 |
SWINGING ARM "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X-EVO -5996655 More informationQuantity required : 1 |
||||||
|
4 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/6/1/1/img/82611.jpg)
5 |
ENGINE SUPPORT BRACKET + SILENTBLOC "PIAGGIO GENUINE PART" 125-250 X-EVO, X8, X7 -599669 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
6 |
SILENBLOC - ENGINE SUPPORT "PIAGGIO GENUINE PART" 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
7 |
BUSH FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 LEADER -273460 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/4/img/67084.jpg)
8 |
564878 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/4/img/67354.jpg)
9 |
BOLT "PIAGGIO GENUINE PART" -597893 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/4/img/82454.jpg)
10 |
598899 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
11 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
12 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
13 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82545R More informationQuantity required : 1 |
||||||
14 |
829377 - CIRCLIP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/8/3/img/68283.jpg)
15 |
655151 - COUVERCLE More informationQuantity required : 1 |
