Vehicle Exploded View - PIAGGIO X8 200 2005-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

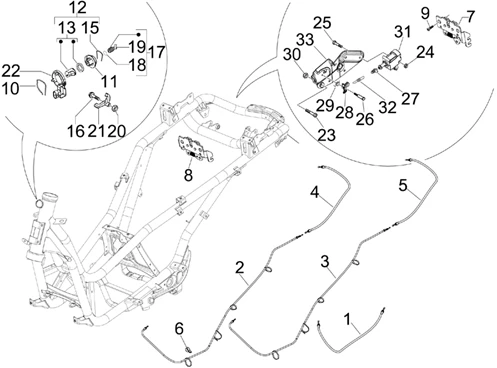

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/128/X8_200_2005-2007_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/7/img/95117.jpg)
1 |
TRANSMISSION CABLE KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" 125-250-400 X-EVO, X8 -CM012814 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/8/img/95118.jpg)
2 |
CM012815 - TRANSMISSION SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/9/img/95119.jpg)
3 |
CM012816 - TRANSMISSION POUR BOITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/0/img/95120.jpg)
4 |
CABLE KIT FOR SADDLE OPENING (FROM TRAPDOOR TO SADDLE) "PIAGGIO GENUINE PART" 125-250-400 X8, X-EVO -CM012817 More informationQuantity required : 1 |
||||||
5 |
CM012818 - TRANSMISSION POUR BOITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
6 |
CM013201 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/2/img/72942.jpg)
7 |
SADDLE LOCK "PIAGGIO GENUINE PART" MP3, X8, X-EVO, X7, X10, BEVERLY/GILERA NEXUS, FUOCO -CM023701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
8 |
SADDLE LOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM023704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
10 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
11 |
LOCK BODY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -1B002607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
12 |
LOCK BLOCK "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125 VESPA GTS/GILERA 50 RUNNER/APRILIA 50 SR -1B006291 More informationQuantity required : 1 |
||||||
|
13 |
LOCK BLOCK "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125 VESPA GTS/GILERA 50 RUNNER/APRILIA 50 SR -1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
15 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
16 |
299972 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/0/5/img/80905.jpg)
17 |
LOCK CYLINDER WITH KEYS "PIAGGIO GENUINE PART" 125-250 X8, 125-250-500 X9 -576552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
18 |
LOCK GASKET RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/8/4/img/80684.jpg)
19 |
KEYBLANK "PIAGGIO GENUINE PART" 125 X8, X9, X7, X-EVO, BEVERLY, FLY, LIBERTY -575810 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
20 |
577620 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/9/0/5/img/83905.jpg)
21 |
621162 - CROCHET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/7/img/67237.jpg)
22 |
ANTENNA "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE (BEFORE 2012) -58200R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
23 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 1 |
||||||
|
24 |
577620 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
25 |
584121 - VIS More informationQuantity required : 2 |
||||||
|
26 |
299972 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
27 |
577128 - ACCOUPLEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
28 |
577129 - LEVIER More informationQuantity required : 2 |
||||||
|
29 |
577131 - RESSORT More informationQuantity required : 2 |
||||||
|
30 |
577620 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
31 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 2 |
||||||
|
31 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
32 |
620415 - RESSORT More informationQuantity required : 2 |
||||||
|
33 |
621605 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
34 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
35 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -298594 More informationQuantity required : 1 |
