Vehicle Exploded View - PIAGGIO X8 200 2005-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

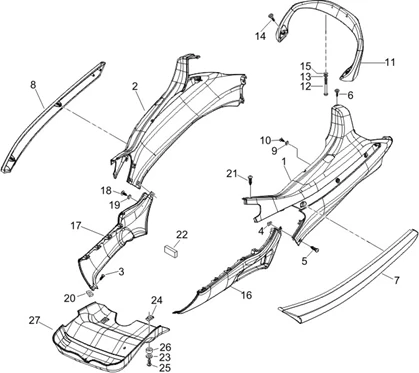

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/128/X8_200_2005-2007_02.32.PNG)
1 |
6202510087 - FLANC GAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/1/5/img/83515.jpg)
1 |
6202510090 - FLANC GAU NOIR 94 More informationQuantity required : 1 |
|||||||||
|
1 |
620251 - FLANC GAU.BRUT More informationQuantity required : 1 |
|||||||||
|
1 |
62025100EC - FLANC GAU More informationQuantity required : 1 |
|||||||||
|
1 |
62025100F2 - FLANC GAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/2/6/img/83526.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250 X-EVO BLACK 79/A -62025100ND- More informationQuantity required : 1 |
|||||||||
|
1 |
62025100RE - FLANC GAU More informationQuantity required : 1 |
|||||||||
|
2 |
620252 - FLANC ARD.DR.BRUT More informationQuantity required : 1 |
|||||||||
|
2 |
620252 - FLANC ARD.DR.BRUT More informationQuantity required : 1 |
|||||||||
|
2 |
62025200D9 - FLANC ARD More informationQuantity required : 1 |
|||||||||
|
2 |
62025200EC - FLANC ARD.DR. More informationQuantity required : 1 |
|||||||||
|
2 |
62025200F2 - FLANC ARD.DR. More informationQuantity required : 1 |
|||||||||
|
2 |
62025200ND - FLANC ARD More informationQuantity required : 1 |
|||||||||
|
2 |
62025200RE - FLANC ARD.DR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
|||||||||
|
5 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/7/1/img/83571.jpg)
7 |
LEFT PANEL PROTECTION "PIAGGIO GENUINE PART" 125-250-400 X8 2004>2006 CHROME -620257- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/7/2/img/83572.jpg)
8 |
RIGHT PANEL PROTECTION "PIAGGIO GENUINE PART" 125-250-400 X8 2004>2006 CHROME -620258 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
9 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/5/6/8/img/83568.jpg)
11 |
PASSENGER HANDLE "PIAGGIO GENUINE PART" 125-250-400 X8 -620255000P More informationQuantity required : 1 |
|||||||||
|
12 |
030062 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/1/img/66041.jpg)
14 |
259708 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
15 |
013880 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
16 |
620245 - SPOILER GAU More informationQuantity required : 1 |
|||||||||
|
16 |
6202450087 - SPOILER GAU More informationQuantity required : 1 |
|||||||||
|
16 |
6202450090 - SPOILER GAU More informationQuantity required : 1 |
|||||||||
|
16 |
62024500D9 - SPOILER GAU More informationQuantity required : 1 |
|||||||||
|
16 |
62024500EC - SPOILER GAUCHE 546 X8 More informationQuantity required : 1 |
|||||||||
|
16 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250 X8 GREY 738/A -62024500F2- More informationQuantity required : 1 |
|||||||||
|
16 |
620245 - SPOILER GAU More informationQuantity required : 1 |
|||||||||
|
16 |
62024500RE - SPOILER GAU More informationQuantity required : 1 |
|||||||||
|
17 |
620246 - SPOILER DR More informationQuantity required : 1 |
|||||||||
|
17 |
6202460087 - SPOILER DR More informationQuantity required : 1 |
|||||||||
|
17 |
6202460090 - SPOILER DR More informationQuantity required : 1 |
|||||||||
|
17 |
62024600D9 - SPOILER DR More informationQuantity required : 1 |
|||||||||
|
17 |
62024600EC - SPOILER DR More informationQuantity required : 1 |
|||||||||
|
17 |
62024600F2 - SPOILER DR More informationQuantity required : 1 |
|||||||||
|
17 |
62024600ND - SPOILER DR More informationQuantity required : 1 |
|||||||||
|
17 |
62024600RE - SPOILER DR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
18 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/1/img/65371.jpg)
19 |
013963 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 8 |
|||||||||
|
21 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 8 |
|||||||||
|
22 |
621485 - TAMPON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
23 |
013950 - RONDELLE S01395000 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
25 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/5/2/img/67752.jpg)
26 |
624085 - ENTRETOISE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/9/1/1/img/84911.jpg)
27 |
LOWER SPOILER CLOSURE "PIAGGIO GENUINE PART" 125-250 X-EVO, X8 -623635 More informationQuantity required : 1 |
|||||||||
