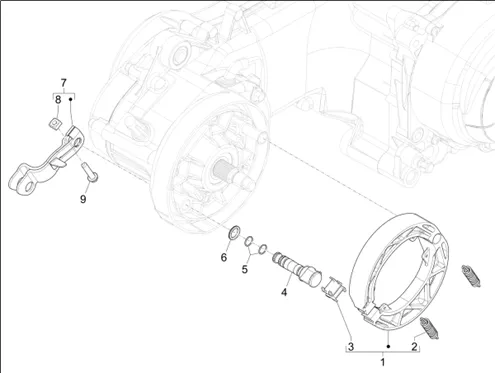

Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA) VESPA

Moteur : 01.35 FREIN POSTERIEUR - MÂCHOIRE
Frein posterieur - Mâchoire
Search
BRAKE SHOE SET SCOOT OEM PIAGGIO 50 FLY 2T ET 4T 2005 > AR, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >, TYPHOON 2010 >/APRILIA 50 SR MOTARD 2010 > (D. 130)-56293R6

1
P2R reference P2R reference 209061
Maker reference Maker reference 56293R6

BRAKE SHOE SET SCOOT OEM PIAGGIO 50 FLY 2T ET 4T 2005 > AR, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >, TYPHOON 2010 >/APRILIA 50 SR MOTARD 2010 > (D. 130)-56293R6

More information

Quantity required : 1

SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384

2
P2R reference P2R reference 68017
Maker reference Maker reference 647384

SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384

More information

Quantity required : 2

647383 - PLAQUETTE

3
P2R reference P2R reference 109046
Maker reference Maker reference 647383

647383-PLATE

More information

Quantity required : 2

CAME OF BRAKE REAR OEM PIAGGIO 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-B014502

4
P2R reference P2R reference 72646
Maker reference Maker reference B014502

CAME OF BRAKE REAR OEM PIAGGIO 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-B014502

More information

Quantity required : 1

B014507 - JOINT

5
P2R reference P2R reference 72647
Maker reference Maker reference B014507

B014507-GASKET

More information

Quantity required : 2

GASKET CAME OF BRAKE REAR OEM PIAGGIO 50 COMMON A LA RANGE-273419

6
P2R reference P2R reference 66124
Maker reference Maker reference 273419

GASKET CAME OF BRAKE REAR OEM PIAGGIO 50 COMMON A LA RANGE-273419

More information

Quantity required : 1

833788 - LEVIER FREIN AR

7
P2R reference P2R reference 69086
Maker reference Maker reference 833788

BRAKE LEVER REAR OEM PIAGGIO 50 COMMON A LA RANGE-833788

More information

Quantity required : 1

NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862

8
P2R reference P2R reference 68791
Maker reference Maker reference 828862

NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862

More information

Quantity required : 1

SCREW FLANGE TH (6X27) OEM PIAGGIO COMMON A LA RANGE-B011784

9
P2R reference P2R reference 110768
Maker reference Maker reference B011784

SCREW FLANGE TH (6X27) OEM PIAGGIO COMMON A LA RANGE-B011784

More information

Quantity required : 1
