Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

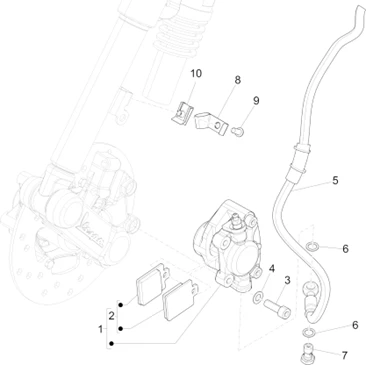

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_05.01.png)
1 |
CM065714-PINCE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/8/2/img/68182.jpg)
2 |
PLATE BRAKE OEM PIAGGIO 50 ZIP 2006 > AV, 50-125 LIBERTY 2006 > AV, 50-125 VESPA LX 2006 > AV, 50-125 PRIMAVERA 2013 > AV, 50-125 VESPA-S 2007 > AV/GILERA 50 DNA 2007 > AV (HENG-TONG)-651356 More informationQuantity required : 2 |
||||||
|
3 |
1C003712-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
|
5 |
1C007075-FRONT BRAKE HYDRAULIC HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
6 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
||||||
|
7 |
2B011672R-SPECIAL SCREW More informationQuantity required : 1 |
||||||
|
8 |
1C004561-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
9 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-274369 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
