Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

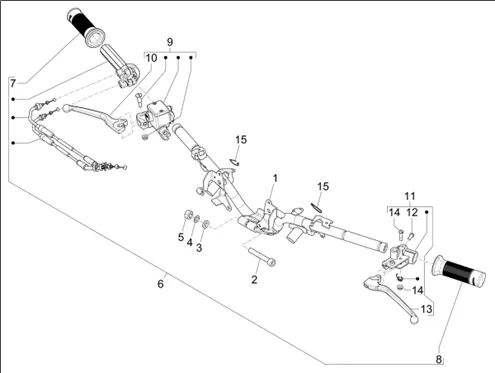

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_03.06.png)
1 |
1B011227-HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/5/9/img/90459.jpg)
2 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-668874 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
3 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
4 |
WASHER PLATE (10X18X2. 5) OEM PIAGGIO COMMON A LA RANGE-267917 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
|
6 |
CM333007000Z1-COMPLETE GAS CONTROL MUFF More informationQuantity required : 1 |
||||||
|
7 |
CM3275050000C-POIGNÃ - E RIGHT More informationQuantity required : 1 |
||||||
|
8 |
CM3275060000C-POIGNÃ - E LEFT More informationQuantity required : 1 |
||||||
|
9 |
CM325803-RIGHT MASTER CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/0/5/8/img/201058.jpg)
10 |
BRAKE LEVER RIGHT OEM PIAGGIO 125-300-310 GTS 2022 >-1C007042 More informationQuantity required : 1 |
||||||
|
11 |
CM328606-SLEEVE WITH BRAKE LEVER ARRIÃ ¨ RE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/8/1/img/70481.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-873433 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/5/img/67075.jpg)
13 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, PRIMAVERA, 50 NRG POWER LEFT (HENG-TONG)-564683 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
14 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/4/6/img/89646.jpg)
15 |
CLIPS SPRING OEM PIAGGIO COMMON A LA RANGE-657046 More informationQuantity required : 2 |
