Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

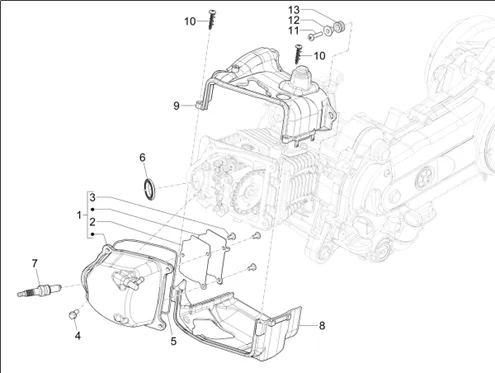

Moteur : 01.12 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/4/4/img/149144.jpg)
1 |
COVER CYLINDER HEAD OEM PIAGGIO 50 LIBERRTY, PRIMAVERA, SPRINT, ZIP 4T 2017 >-1A008608 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/8/9/img/69589.jpg)
2 |
GASKET BLOW-BY COVER CYLINDER HEAD OEM PIAGGIO 50 4T ZIP, PRIMAVERA, SPRINT 2017 >-849012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
3 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 4 |
||||||
|
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/1/img/127211.jpg)
5 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO 50 4T ZIP, LIBERTY, SPRINT, PRIMAVERA 2017 >-1A000889 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/5/6/img/94756.jpg)
6 |
GASKET OF TROU SPARK PLUG OEM PIAGGIO COMMON A LA RANGE-B017488 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/8/img/149168.jpg)
7 |
SPARK PLUG IRIDIUM MR8BI-8 OEM PIAGGIO 50 ZIP 4T 2018 >, LIBERTY 4T 2017 >, VESPA PRIMAVERA 4T 2018 >, VESPA SPRINT 2018 >/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85-1A010638 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/6/img/174696.jpg)
8 |
COIFFE CYLINDER HEAD COTE EXHAUST OEM PIAGGIO 50 LIBERTY, PRIMAVERA, SPRINT, ZIP 2021 >-1A017373 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/5/img/174695.jpg)
9 |
COIFFE CYLINDER HEAD COTE INTAKE OEM PIAGGIO 50 LIBERTY, PRIMAVERA, SPRINT, ZIP 2021 >-1A017372 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
10 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
11 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 1 |
||||||
12 |
B014214-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/2/2/img/127722.jpg)
13 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-B014213 More informationQuantity required : 1 |
