Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

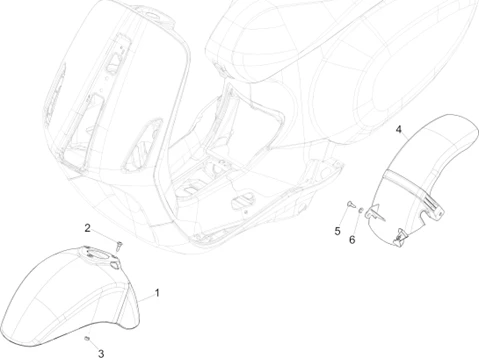

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_02.33.png)
1 |
1B006646000A19-FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
1 |
1B006646000B04-FRONT MUDGUARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/0/6/4/8/img/160648.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA SPRINT 2014 > BLACK 99/C-1B006646000NV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/1/3/9/img/178139.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 SPRINT VESPA 2014 > RED 894-1B006646000R7 More informationQuantity required : 1 |
||||||
|
1 |
1B006646000V03-FRONT MUDGUARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138 More informationQuantity required : 1 |
||||||
|
4 |
MUDGUARD/LECHE REAR WHEEL OEM PIAGGIO 50 FLY 2006 > 2011, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014, 125 FLY 2006 > 2011-1B012164 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
5 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
6 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
01.01 Moteur complet
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.01.png)
-
01.05 CARTER MOTEUR
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.05.png)
-
01.06 Vilebrequin
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.06.png)
-
01.07 Groupe cylindre-piston-axe
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.07.png)
-
01.10 Ensemble culasse - Soupape
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.10.png)
-
01.11 Groupe support balanciers
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.11.png)
-
01.12 Couvercle culasse
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.12.png)
-
01.13 Poulie motrice
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.13.png)
-
01.14 Poulie entrainee
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.14.png)
-
01.15 Couvercle carter - Refoidissement carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_EMEA_01.15.png)
-
01.18 Pompe à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.18.png)
-
01.20 Démarrage - Démarrage électrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.20.png)
-
01.21 Volant magnetique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.21.png)
-
01.23 Couvercle volant magnetique - Filtre à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.23.png)
-
01.25 Ensemble réducteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.25.png)
-
01.35 Frein posterieur - Mâchoire
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.35.png)
-
01.36 Boîtier papillon - Injecteur - Raccord d'admission
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.36.png)
-
01.42 Silencieux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.42.png)
-
01.45 Filtre à air
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_01.45.png)
-
02.01 Châssis/coque
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_02.01.png)
-
02.25 Béquille/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_02.25.png)
-
02.26 Tablier avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_02.26.png)
-
02.30 Coffre avant - Contre-tablier
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_02.30.png)
-
02.31 Protection centrale - Repose-pieds
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_02.31.png)
-
02.32 Couvertures laterales - Spoiler
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1215/Vespa_Sprint_S_50_E4_2024_(EMEA)_02.32.png)
-

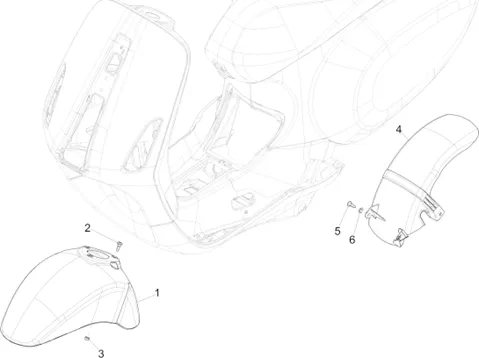

02.33 Logement roue - Garde boue
