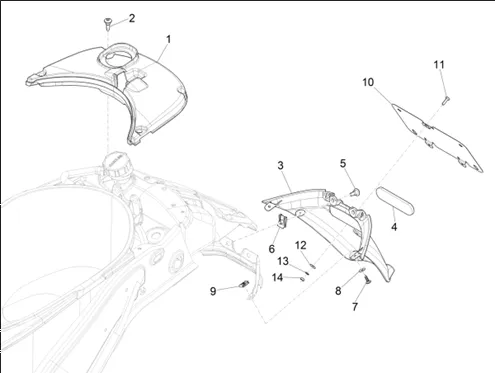

Vehicle Exploded View - VESPA VESPA SPRINT 50 Vespa Sprint S 50 E4 2024 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
Couvercle arrière - Pare-boue
Search
COVER TANK OEM PIAGGIO 50 PRIMAVERA, SPRINT 2013 >-1B000320

1
P2R reference P2R reference 75546
Maker reference Maker reference 1B000320

COVER TANK OEM PIAGGIO 50 PRIMAVERA, SPRINT 2013 >-1B000320

More information

Quantity required : 1

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

2
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

More information

Quantity required : 4

MUD FLAP REAR OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-676206000C

3
P2R reference P2R reference 92113
Maker reference Maker reference 676206000C

MUD FLAP REAR OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-676206000C

More information

Quantity required : 1

CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5

4
P2R reference P2R reference 67253
Maker reference Maker reference 58233R5

CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5

More information

Quantity required : 1

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

5
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

7
P2R reference P2R reference 65403
Maker reference Maker reference 0159115

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

More information

Quantity required : 2

WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670

8
P2R reference P2R reference 65425
Maker reference Maker reference 0166705

WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670

More information

Quantity required : 2

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

9
P2R reference P2R reference 72924
Maker reference Maker reference CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

More information

Quantity required : 2

DOOR PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-638833

10
P2R reference P2R reference 67812
Maker reference Maker reference 638833

DOOR PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-638833

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957

11
P2R reference P2R reference 158977
Maker reference Maker reference 581957

SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957

More information

Quantity required : 3

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

12
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

More information

Quantity required : 3

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

13
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

More information

Quantity required : 3

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

14
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

More information

Quantity required : 3
