Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

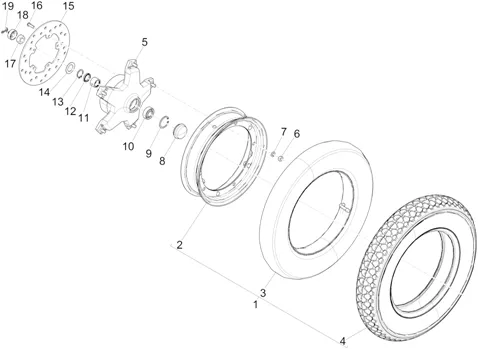

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_04.11.PNG)
1 |
597452 - ROUE DE SECOURS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/2/9/img/68129.jpg)
2 |
INNER TUBE (300/350-10) OEM PIAGGIO 125 VESPA PX 1998 >/THREE-WHEELER APE 1980 > 1985-650028M More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/6/2/img/74262.jpg)
3 |
RIM/FRONT WHEEL OU REAR OEM PIAGGIO 125 VESPA PX 1998 >-0846315 More informationQuantity required : 1 |
|||||||||
|
4 |
TYRE 3, 50X10 S83 REINF TT/TL 59J OEM PIAGGIO 125 VESPA PX, APE-1R000083 More informationQuantity required : 1 |
|||||||||
|
4 |
668714-TYRE 3. 50-10 SAVATECH More informationQuantity required : 1 |
|||||||||
|
4 |
TYRE 3, 50X10 S83 REINF TT/TL 59J OEM PIAGGIO 125 VESPA PX, APE-1R000083 More informationQuantity required : 1 |
|||||||||
|
5 |
TAMBOUR OF BRAKE FRONT OEM PIAGGIO VESPA 125 PX-563762 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 5 |
|||||||||
|
7 |
667059-WASHER More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/0/img/65830.jpg)
8 |
CAP DE REAR WHEEL OEM PIAGGIO APRILIA 50-125 SR MOTARD/GILERA DNA/PIAGGIO 50-125 FLY, 125 VESPA PX-197983 More informationQuantity required : 1 |
|||||||||
|
8 |
CAP DE REAR WHEEL OEM PIAGGIO APRILIA 50-125 SR MOTARD/GILERA DNA/PIAGGIO 50-125 FLY, 125 VESPA PX-197983 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
9 |
CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/3/0/img/75030.jpg)
10 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177610 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/3/img/75023.jpg)
11 |
GASKET OF FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177443 More informationQuantity required : 1 |
|||||||||
|
12 |
GASKET OF FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177443 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/6/img/63816.jpg)
13 |
CIRCLIPS (DIAMETER INNER MM 20MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-006422 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/1/img/75021.jpg)
14 |
WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177414 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/0/img/67040_20260413172022.jpg)
15 |
BRAKE DISC SCOOT OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA S 2007 >, PRIMAVERA 2013 >, FLY 2005 >, 50 ZIP SP 2006 >, 125 VESPA PX 2001 > FRONT-56395R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
16 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/1/img/65601.jpg)
17 |
NUT (14X1. 50) OEM PIAGGIO COMMON A LA RANGE-021114 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/9/img/75029.jpg)
18 |
CAPUCHON/CAGE A GOUPILLE DE WHEEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-177609 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
19 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
|||||||||
