Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

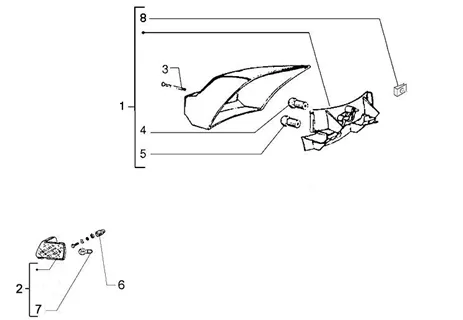

Installation électrique : 06.04 ECLAIRAGES ARRIERE CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/0/6/img/81806_20260204190943.jpg)
1 |
LAMP REAR OEM PIAGGIO 125 VESPA PX-58269R More informationQuantity required : 1 |
||||||
1 |
FEU AR CPLT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/7/2/img/85572.jpg)
2 |
REAR LEFT INDICATOR OEM PIAGGIO 125 VESPA PX 1998 >-638763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/7/3/img/85573.jpg)
2 |
REAR RIGHT INDICATOR OEM PIAGGIO 125 VESPA PX 1998 >-638764 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/7/img/65407.jpg)
3 |
SCREW PARKER (3. 5X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015994 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
4 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/9/img/65799.jpg)
5 |
181747 - AMPOULE 12V 5W More informationQuantity required : 1 |
||||||
|
6 |
230320-CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/6/9/img/113369.jpg)
7 |
AMPOULE/LAMPE 12V 21W BA15S ORANGE OEM PIAGGIO COMMON A LA RANGE-584004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
