Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

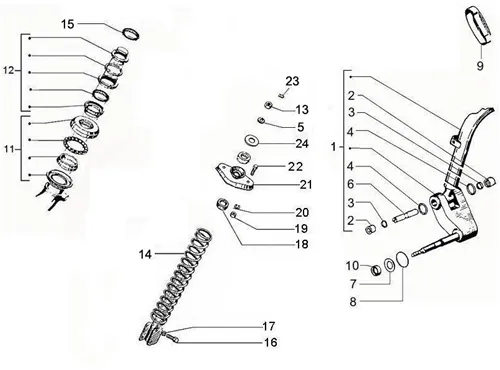

Suspensions - roues : 04.07 COMPONENTI DELLA FORCELLA MINGXING
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_04.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/1/1/img/80011.jpg)
1 |
FORK OEM PIAGGIO 125 VESPA PX-5640715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/2/6/2/img/75262.jpg)
2 |
CAGE A AIGUILLES ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3-198513 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/7/img/65707.jpg)
3 |
GASKET OF ARM ARTICULATION DE FORK FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-119219 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/4/img/63834.jpg)
4 |
GASKET ARTICULATION DE BALANCIER DE FORK OEM PIAGGIO COMMON A LA RANGE VESPA ET MP3/GASKET THERMOSTAT PORTER-006731 More informationQuantity required : 2 |
||||||
5 |
667058-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/9/img/65779.jpg)
6 |
SPINDLE D'ARTICULATION DE ARM SUSPENSION FRONT OEM PIAGGIO COMMON A LA RANGE SCOOTER VESPA/125-250-300-400-500 MP3-177451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/4/img/75024.jpg)
7 |
WASHER/SPACER OEM PIAGGIO COMMON A LA RANGE-177445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/6/img/65776.jpg)
8 |
O-RING (34. 65X1. 78) OEM PIAGGIO COMMON A LA RANGE-177408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/3/3/img/80033.jpg)
9 |
PROTECTOR FORK FRONT OEM PIAGGIO 125 VESPA PX CHROMEE-564222 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/8/img/75028.jpg)
10 |
GASKET ETANCHEITE 26, 5 X 21 X 3 FORK MINGXING OEM PIAGGIO COMMON A LA RANGE-177521 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
11 |
BEARING DE STEERING LOWER OEM PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA, VESPA S, 125-250-300-400-500 MP3-65007545 More informationQuantity required : 1 |
||||||
|
11 |
BEARING DE STEERING LOWER OEM PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA, VESPA S, 125-250-300-400-500 MP3-65007545 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
12 |
SET OF STEERING SCOOT OEM PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR (UPPER)-65069345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
13 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-021210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/8/1/img/140381.jpg)
14 |
SHOCK ABSORBER FRONT OEM PIAGGIO 125 PX-58570R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
15 |
WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
16 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
17 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/6/img/74966.jpg)
18 |
BUFFER DE ARM DE FORK FRONT OEM PIAGGIO 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX-174085 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
19 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
20 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
|
21 |
174806-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
22 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
23 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/7/img/74967.jpg)
24 |
WASHER PLATE (10. 5X35X2) OEM PIAGGIO COMMON A LA RANGE-174088 More informationQuantity required : 1 |
