Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

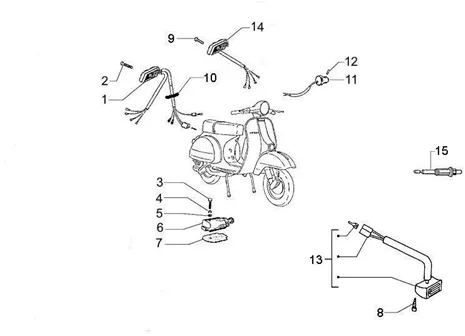

Installation électrique : 06.01 INVERSEURS COMMUTATEURS BOUTONS INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_06.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/6/5/img/81865.jpg)
1 |
SWITCH ECLAIRAGE OEM PIAGGIO 125 VESPA PX 2002 >-583090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/2/img/65432.jpg)
2 |
SCREW MOUNTING INTERRUPTEUR OEM PIAGGIO 125 PX VESPA/THREE-WHEELER APE CALESSINO, CLASSIC-018503 More informationQuantity required : 1 |
||||||
3 |
031033-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
4 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
5 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/9/3/img/75093.jpg)
6 |
CONTACTEUR DE STOP OEM PIAGGIO 125 PX VESPA-181881 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/3/3/img/74133.jpg)
7 |
GASKET INTERUPTEUR OEM VESPA PX 125 1998 > 2017/VESPA 50 FL2 1997 <-070144 More informationQuantity required : 1 |
||||||
|
8 |
018527-SCREW S01852700 More informationQuantity required : 2 |
||||||
|
9 |
SCREW MOUNTING INTERRUPTEUR OEM PIAGGIO 125 PX VESPA/THREE-WHEELER APE CALESSINO, CLASSIC-018503 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/7/3/img/76673.jpg)
11 |
SWITCH DE NEIMAN OEM PIAGGIO 125 VESPA PX 1998 >-231024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/5/img/65435.jpg)
12 |
SCREW STUD (5X8) OEM PIAGGIO COMMON A LA RANGE-018515 More informationQuantity required : 1 |
||||||
|
13 |
580937-BUTTON STARTER MOTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/3/7/img/81437.jpg)
14 |
CONTACTEUR/SWITCH DE INDICATOR OEM PIAGGIO 125 VESPA PX 1998 >-580395 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/9/0/2/img/81902.jpg)
15 |
CONTACTEUR DE STOP OEM PIAGGIO 125 VESPA PX 1998 >-583330 More informationQuantity required : 1 |
