Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

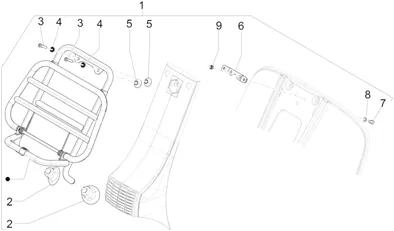

Châssis - parties plastiques - carrosseries : 02.43 PORTE BAGAGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_02.43.PNG)
1 |
DOOR-LUGGAGE FRONT OEM PIAGGIO 125 VESPA PX 2011 >-1R00029 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/2/2/img/90622.jpg)
2 |
BUFFER/VENTOUSE FOR DOOR LUGGAGE FRONT OEM PIAGGIO COMMON A LA RANGE-672066 More informationQuantity required : 1 |
||||||
|
3 |
672340-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
4 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/7/7/3/img/90773.jpg)
5 |
WASHER GASKET OF DOOR LUGGAGE FRONT OEM PIAGGIO COMMON A LA RANGE VESPA-672330 More informationQuantity required : 2 |
||||||
|
6 |
672290-CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
7 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675 More informationQuantity required : 2 |
||||||
|
8 |
012536-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
9 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 4 |
