Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

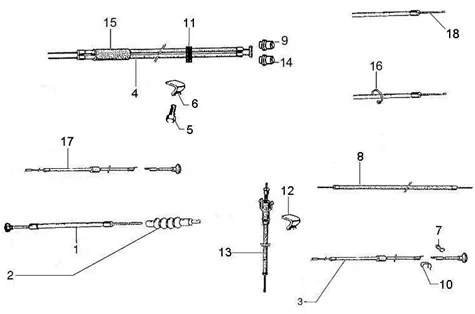

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/9/3/img/77393.jpg)
1 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO 125 VESPA PX 1998 >-272606 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/9/4/img/74894.jpg)
2 |
156401-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/0/7/img/90207.jpg)
3 |
CABLE/CONTROL/TRANSMISSION DE STARTER OEM PIAGGIO 125 VESPA PX 1998 >-667208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/2/7/img/86627.jpg)
4 |
CABLE/CONTROL/TRANSMISSION DE SPEED MAXI SCOOTER OEM PIAGGIO 125 VESPA PX 1998 >-6465665 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/5/img/65405.jpg)
5 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-015946 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/1/img/66081.jpg)
6 |
CLAMP FITTING KIT HOSE/HOSE OEM PIAGGIO COMMON A LA RANGE-269273 More informationQuantity required : 1 |
||||||
7 |
050207 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/8/2/img/90182.jpg)
8 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO 125 VESPA PX 2011 >-667181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/6/7/img/81467.jpg)
9 |
BUTEE TRANSMISSION BOX OF SPEED OEM PIAGGIO 125 PX VESPA-580906 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/4/img/65804.jpg)
10 |
SPRING TIRETTE STARTER OEM PIAGGIO 125 PX VESPA-183321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/1/9/img/74819.jpg)
11 |
152210-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/6/9/img/82969.jpg)
12 |
PLATE MOUNTING TRANSMISSION INSTRUMENT CLUSTER OEM PIAGGIO 125 PX-601102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/8/6/img/90386.jpg)
13 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 125 VESPA PX 1998 >-668463 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/6/8/img/81468.jpg)
14 |
BUTEE TRANSMISSION BOX OF SPEED OEM PIAGGIO 125 PX VESPA-580908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/3/3/7/img/74337.jpg)
15 |
090541 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 2 |
||||||
|
17 |
TIRANT DE STARTER OEM PIAGGIO VESPA 125 PX/THREE-WHEELER APE 50 2T 1980 > 1985-580938 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/6/8/img/75168.jpg)
18 |
CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 125 VESPA PX 1998 >-191804 More informationQuantity required : 1 |
