Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T Navy E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

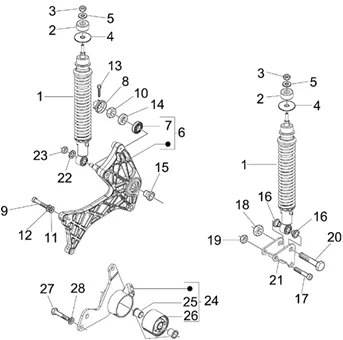

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/209/Vespa_GTV_125_4T_Navy_E3_2007-2008_04.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/0/1/9/5/img/170195.jpg)
1 |
REAR SHOCK ABSORBER OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-1C004531R More informationQuantity required : 2 |
||||||
|
1 |
REAR SHOCK ABSORBER OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-1C004531R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/2/img/65782.jpg)
2 |
BUFFER UPPER REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA SCOOTER 50 CC ET MAXI SCOOTER 125-250 CC-178150 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/8/img/65598.jpg)
3 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-021108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/7/img/66057.jpg)
4 |
WASHER PLATE (8X37X1, 5) OEM PIAGGIO COMMON A LA RANGE-267038 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
5 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
6 |
1A001903 - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
7 |
BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
8 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
8 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
9 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
10 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
11 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
12 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
13 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/6/img/67346.jpg)
14 |
SPACER (17X25X8. 4) DE REAR WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC-597528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/5/img/69555.jpg)
15 |
SPACER DE REAR WHEEL OEM PIAGGIO COMMON A LA RANGE-848039 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/2/3/7/img/82237.jpg)
16 |
BUSH EN T FOR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597149 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
17 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-844483 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
18 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
19 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
20 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 1 |
||||||
|
21 |
598143-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/0/img/65370.jpg)
22 |
WASHER PLATE (10X30X2) OEM PIAGGIO COMMON A LA RANGE-013962 More informationQuantity required : 1 |
||||||
|
23 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
24 |
BRACKET RUBBER MOUNT ENGINE OEM PIAGGIO 125 VESPA GTS 2007 >-599249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
25 |
BUSH FOR RUBBER MOUNT DE OEM MOPED SWINGARM ENGINE OEM PIAGGIO COMMON A LA RANGE-273460 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
26 |
RUBBER MOUNT ENGINE OEM PIAGGIO 125-250 MP3 2007 >, 125 X8 2004 >, X9 2003 >, X-EVO 2007 >, X10 2012 >, VESPA GTS 2007 >/GILERA 125-250 NEXUS 2007 >, RUNNER 2005 >/APRILIA 125 SR-MAX 2011 >-272750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
27 |
BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
28 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 2 |
