Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T Navy E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

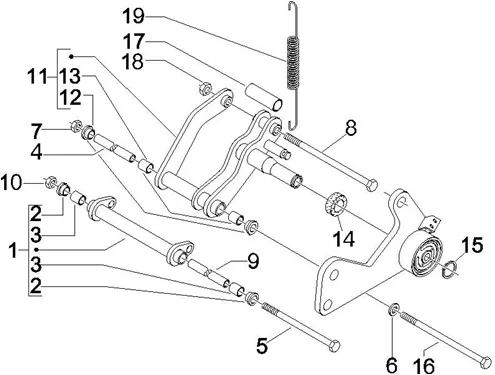

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/209/Vespa_GTV_125_4T_Navy_E3_2007-2008_04.01.PNG)
1 |
56474R - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/5/img/82455.jpg)
2 |
BUSH DE OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-598917 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
3 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY-600161 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/3/img/82313.jpg)
4 |
SPACER DE OEM MOPED SWINGARM (290 MM) OEM PIAGGIO 125-250-300 VESPA GTS-597857 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
5 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS-597914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/6/img/77146.jpg)
6 |
WASHER DE OEM MOPED SWINGARM OEM PIAGGIO VESPA-266845 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
8 |
SPINDLE/SCREW ARM DE SUSPENSION (10X202) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-271807 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/5/img/72975.jpg)
9 |
SPACER OEM MOPED SWINGARM (L183MM) OEM PIAGGIO 125-250-300-400-500 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC-CM067801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
11 |
5992465 - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
12 |
BUSH/GASKET ARTICULATION OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-597317 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
13 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER-56127R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/7/8/img/82478.jpg)
14 |
RUBBER MOUNT DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS, 125-300-350 BEVERLY, 125-300 YOURBAN, 125 X10-599250 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
15 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
||||||
|
16 |
598237-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/4/img/82464.jpg)
17 |
SPACER OEM MOPED SWINGARM OEM APRILIA 125 SR GT 2021 >-599077 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/4/img/67084.jpg)
18 |
NUT FLANGE (M10) OEM PIAGGIO COMMON A LA RANGE-564878 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/3/img/82463.jpg)
19 |
SPRING DE OEM MOPED SWINGARM OEM PIAGGIO VESPA GTS 2007 > 2016 LONGEUR 118MM DIAMETRE 22MM-599059 More informationQuantity required : 1 |
