Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T Navy E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

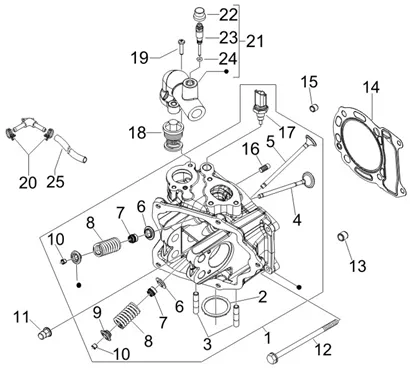

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/209/Vespa_GTV_125_4T_Navy_E3_2007-2008_01.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/3/img/70723.jpg)
1 |
CYLINDER HEAD MAXI SCOOTER OEM PIAGGIO 125 MP3, BEVERLY, X7, X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC, SPORT-CITY (LIVREE WITHOUT SHAFT A CAME NI BASCULEURS)-8800536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/2/img/66602.jpg)
2 |
GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-480853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/8/img/66478.jpg)
3 |
STUD (M7) MOUNTING EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-435629 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/7/img/146217.jpg)
4 |
VALVE INTAKE (22) OEM PIAGGIO 125-250-300 X7, BEVERLY, MP3, VESPA GTS, CARNABY, 125-250 X8, EVO/APRILIA 125-250-300 ATLANTIC, SR MAX/GILERA125-250 NEXUS, RUNNER (ENGINE LEADER)-873809 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/4/img/149104.jpg)
5 |
VALVE D-ECHAPPEMENT (19. 2) OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 > X8, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-873839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
6 |
CUP LOWER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483711 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
7 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/8/img/68758.jpg)
8 |
SPRING VALVE OEM PIAGGIO MP3 125-250-300 2006 > 2017, X9 125 2005 > 2009, X-EVO 125 2007 > 2016/VESPA GTS 125-250-300 2005 > 2018-828480 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/9/img/66649.jpg)
9 |
CUP UPPER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483914 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
10 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/8/img/66358.jpg)
11 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-411296 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/2/img/66682.jpg)
12 |
SCREW TH (6X100) OEM PIAGGIO COMMON A LA RANGE-485603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
13 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/1/9/img/70619.jpg)
14 |
CYLINDER HEAD GASKET 0. 3MM Ø57 OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-876625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
15 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
16 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/0/img/68590.jpg)
17 |
SONDE TEMPERATURE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-82622R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/5/img/68745.jpg)
18 |
THERMOSTAT/CALORSTAT MAXI SCOOTER OEM PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, 125-250 X-EVO, X9,/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SPORT-CITY-82831R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
19 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 2 |
||||||
|
19 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
20 |
HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/7/7/img/72777.jpg)
21 |
COVER DU THERMOSTAT OEM PIAGGIO 125-250-300-350 MP3, VESPA GTS, 125-250 X-EVO, 125-350 X10/GILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC-B018147 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
22 |
063435-CAPUCHON More informationQuantity required : 1 |
||||||
23 |
845605-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/5/img/66295.jpg)
24 |
O-RING (6X3X1) SCREW OF PURGE COVER DE CALORSTAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-297027 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/0/img/66450.jpg)
25 |
HOSE RECHAUFFAGE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-434381 More informationQuantity required : 1 |
