Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T Navy E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

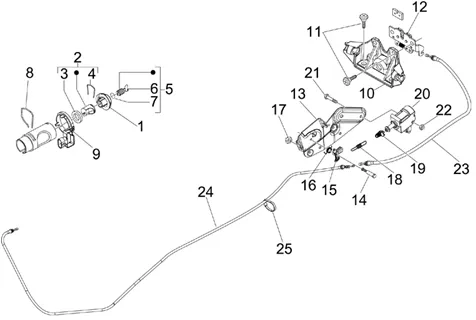

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/209/Vespa_GTV_125_4T_Navy_E3_2007-2008_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
1 |
BODY DE LOCK OEM PIAGGIO 50 ZIP, NRG, TYPHOON, 50-125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9-1B002607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
2 |
BLOC LOCK SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY-1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
3 |
WASHER DE BLOC STEERING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-298594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
4 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/4/5/img/151345.jpg)
5 |
IGNITION SWITCH/LOCK OEM PIAGGIO 125-250 VESPA GTS 2007 > 300 VESPA GTS 2010 >, 125 PRIMAVERA 2013 >, SPRINT 2014 >-1B004727R More informationQuantity required : 1 |
||||||
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
7 |
GASKET OF LOCK OEM PIAGGIO COMMON A TOUTE LA RANGE-298731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
8 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/7/img/67237.jpg)
9 |
ANTENNE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER (FRONT 2012)-1D003415R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/4/7/img/81247.jpg)
10 |
BRACKET LOCK DE SEAT OEM PIAGGIO VESPA 125-250-300 GTS-57747300EB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
11 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/3/1/img/95231.jpg)
12 |
LOCK/MECANISME LATCH DE SEAT OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-CM023703 More informationQuantity required : 1 |
||||||
|
13 |
577471-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
14 |
SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
15 |
LEVER DE LOCK OEM PIAGGIO COMMON A LA RANGE-577129 More informationQuantity required : 1 |
||||||
|
16 |
577131-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
17 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
18 |
SPRING DE LOCK OEM PIAGGIO COMMON A LA RANGE-620415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
19 |
GASKET OF CABLE/TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-577128 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
20 |
ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R More informationQuantity required : 1 |
||||||
|
20 |
ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
21 |
SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
22 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/6/img/95116.jpg)
23 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE SEAT (PARTIE FRONT) OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-CM012813 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/4/img/95114.jpg)
24 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE SEAT (PARTIE REAR) OEM PIAGGIO 125-250-300 VESPA GTS-CM012811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/9/img/65739.jpg)
25 |
CLIPS SPRING OEM PIAGGIO COMMON A LA RANGE-140435 More informationQuantity required : 1 |
