Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T Navy E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

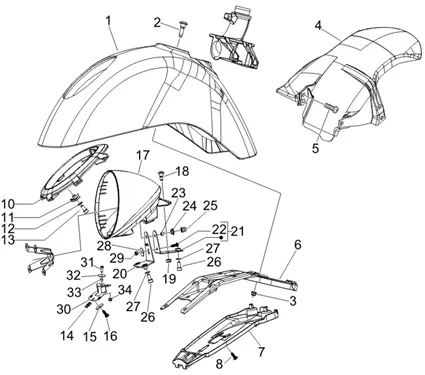

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/209/Vespa_GTV_125_4T_Navy_E3_2007-2008_02.33.PNG)
1 |
647891-MUDGUARD AVT More informationQuantity required : 1 |
|||||||||
|
1 |
64789100DE - GARDE BOUE AVT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
3 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 3 |
|||||||||
|
4 |
REAR MUDGUARD "PIAGGIO GENUINE PART" 125-250-300 VESOA GTS -1B001422- More informationQuantity required : 1 |
|||||||||
|
5 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
|
6 |
647892-PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/7/7/8/img/86778.jpg)
7 |
PROTECTOR-MUD/BAVOLET FRONT OEM PIAGGIO 125-250 VESPA GT, 250-300 VESPA GTV-647893 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
8 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/7/9/2/img/86792.jpg)
10 |
FLANGE PROTECTOR MUD DE FORK OEM PIAGGIO 125-250 VESPA GT, 250-300 VESPA GTV-648061 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
12 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/8/3/img/110283.JPG)
13 |
239687 SCREW More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/2/img/95192.jpg)
14 |
CM017413-PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/8/img/63788.jpg)
15 |
WASHER PLATE (5X20X1) OEM PIAGGIO COMMON A LA RANGE-004021 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/2/img/66072.jpg)
16 |
SCREW AUTOTARAUDEUSE (4, 8X13) OEM COMMON A LA RANGE PIAGGIO-268418 More informationQuantity required : 1 |
|||||||||
|
17 |
CUVELAGE DE HEADLAMP OEM PIAGGIO 125-250-300 GTV 2006 >-647846 More informationQuantity required : 1 |
|||||||||
|
17 |
64784600DE - FACE AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
18 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
19 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-195482 More informationQuantity required : 1 |
|||||||||
|
20 |
647886-PLATE More informationQuantity required : 1 |
|||||||||
|
21 |
647887-CALIPER More informationQuantity required : 1 |
|||||||||
|
22 |
Vis |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
23 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
24 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.jpg)
25 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 1 |
|||||||||
|
25 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 1 |
|||||||||
|
26 |
239687 SCREW More informationQuantity required : 3 |
|||||||||
|
27 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 3 |
|||||||||
|
28 |
WASHER PLATE (5X20X1) OEM PIAGGIO COMMON A LA RANGE-004021 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
29 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-012112 More informationQuantity required : 1 |
|||||||||
|
30 |
648060-PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
31 |
SCREW BTR HEAD BOMBEE (4X10) OEM PIAGGIO COMMON A LA RANGE-621914 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/1/img/65371.jpg)
32 |
WASHER PLATE (4. 2X16) OEM PIAGGIO COMMON A LA RANGE-013963 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/7/9/0/img/86790.JPG)
33 |
648059-SPACER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
34 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 2 |
|||||||||
