Vehicle Exploded View - VESPA VESPA GT 125 Vespa GTV 125 4T Navy E3 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

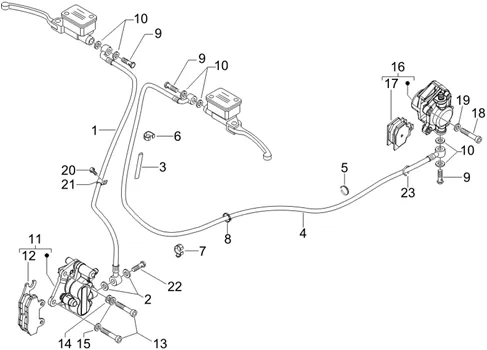

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/209/Vespa_GTV_125_4T_Navy_E3_2007-2008_05.01.PNG)
1 |
648162-HOSE A BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
2 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
||||||
|
3 |
580160 - DISPOSITIF More informationQuantity required : 1 |
||||||
|
4 |
647975 - TUYAU A FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
6 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 1 |
||||||
|
7 |
217280 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
8 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
9 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 1 |
||||||
|
10 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/0/img/72980.jpg)
11 |
BRAKE CALIPER SCOOT OEM PIAGGIO 50-125 FLY 2005 >, LIBERTY 2009 >, VESPA PRIMAVERA 2013 >, VESPA SPRIN 2014 >, 125 X-EVO, VESPA GTS/GILERA 50 RUNNER, 125 NEXUS, SR (HENG-TONG SLX 12')-CM0683016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
12 |
BRAKE PAD OEM PIAGGIO 125 X-EVO AV, X8 AV, X9 AV, 125-300 VESPA GTS AV, 400 X-EVO AV + AR, 125 FLY AV/GILERA 800 GP AR/APRILIA 854 SRV AR, 125-300 SR-MAX AV + AR (PAIRE) (HENG-TONG)-647078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/8/img/78328.jpg)
13 |
SCREW BTR (8X18) OEM PIAGGIO COMMON A LA RANGE-319532 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
14 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
15 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/1/4/8/img/187148.jpg)
16 |
BRAKE CALIPER REAR HENG-TONG OEM PIAGGIO 125 FLY 2012 >, 125-250 VESPA GTS 2007 >, 300 VESPA GTS 2010 >, 125 HEXAGON GTX 1998 > 2005/GILERA 125 RUNNER 2005 >-CM294804 More informationQuantity required : 1 |
||||||
|
16 |
BRAKE CALIPER REAR HENG-TONG OEM PIAGGIO 125 FLY 2012 >, 125-250 VESPA GTS 2007 >, 300 VESPA GTS 2010 >, 125 HEXAGON GTX 1998 > 2005/GILERA 125 RUNNER 2005 >-CM294804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/8/img/68008.jpg)
17 |
PLATE BRAKE OEM PIAGGIO 125-250-300 VESPA GTS 2005 > AR/GILERA 125 RUNNER 2005 > AR (PAIRE)-647161 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
18 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 2 |
||||||
|
19 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
20 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 1 |
||||||
|
21 |
597418-CLAMP More informationQuantity required : 1 |
||||||
|
22 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/8/img/67078.jpg)
23 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-564761 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
