Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015 VESPA

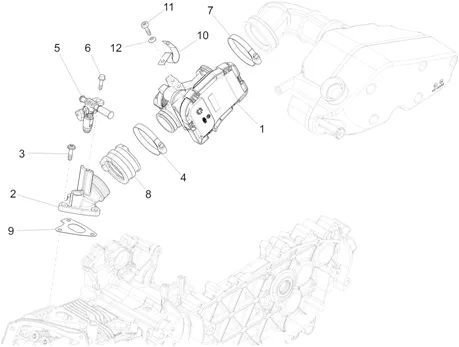

Moteur : 01.36 CORPS PAPILLON - INJECTEUR - RACCORD D'ADMISSION
Corps papillon - Injecteur - Raccord d'admission
Search
CM084917 - CORPS CLAPET DE GAZ

1
P2R reference P2R reference 95819
Maker reference Maker reference CM084917

CM084917-BODY CLAPET DE THROTTLE

More information

Quantity required : 1

1A007986 - RACCORD D'ADMISSION

2
P2R reference P2R reference 146266
Maker reference Maker reference 1A007986

1A007986-FITTING D'ADMISSION

More information

Quantity required : 1

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

3
P2R reference P2R reference 109062
Maker reference Maker reference 830487

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

More information

Quantity required : 3

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

3
P2R reference P2R reference 109062
Maker reference Maker reference 1A000352

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

More information

Quantity required : 3

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

4
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

More information

Quantity required : 1

INJECTEUR OEM PIAGGIO 125 FLY 2012 >, LIBERTY 2013 >, VESPA GTS 2013 >, VESPA LX 2012 >, PRIMAVERA 2013 >, SPRINT 2014 >, VESPA-S 2012 > (ENGINE 3 SOUPAPES)-8799715

5
P2R reference P2R reference 93361
Maker reference Maker reference 8799715

INJECTEUR OEM PIAGGIO 125 FLY 2012 >, LIBERTY 2013 >, VESPA GTS 2013 >, VESPA LX 2012 >, PRIMAVERA 2013 >, SPRINT 2014 >, VESPA-S 2012 > (ENGINE 3 SOUPAPES)-8799715

More information

Quantity required : 1

1A003001 - VIS PARKER

6
P2R reference P2R reference 109022
Maker reference Maker reference 1A003001

1A003001-SCREW PARKER

More information

Quantity required : 1

CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188

7
P2R reference P2R reference 111556
Maker reference Maker reference 614188

CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188

More information

Quantity required : 1

1A003984 - RACCORD DU FLEXIBLE

8
P2R reference P2R reference 127246
Maker reference Maker reference 1A003984

1A003984-FITTING DU FLEXIBLE

More information

Quantity required : 1

GASKET MANIFOLD FITTING INTAKE OEM PIAGGIO 125 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A003750

9
P2R reference P2R reference 127234
Maker reference Maker reference 1A003750

GASKET MANIFOLD FITTING INTAKE OEM PIAGGIO 125 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A003750

More information

Quantity required : 1

642044 - COLLIERS

10
P2R reference P2R reference 67960
Maker reference Maker reference 642044

642044-COLLIERS

More information

Quantity required : 1

873653 - VIS TARAUD

11
P2R reference P2R reference 70497
Maker reference Maker reference 873653

873653-SCREW TARAUD

More information

Quantity required : 1

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

12
P2R reference P2R reference 65342
Maker reference Maker reference 0125285

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

More information

Quantity required : 1
