Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015 VESPA

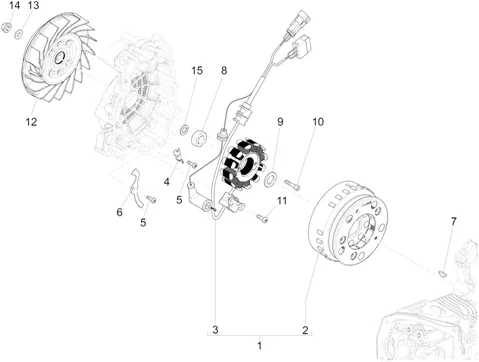

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
680207 - VOLANT MAGNET.

1
P2R reference P2R reference 92164
Maker reference Maker reference 680207

680207 - VOLANT MAGNET.

More information

Quantity required : 1

ROTOR COMPLETE WITH WHEEL LIBRE OEM PIAGGIO 125 FLY, LIBERTY, VESPA GTS, VESPA LX, PRIMAVERA, SPRINT, VESPA-S (ENGINE 3 SOUPAPES ET IGET) 2020 <-B018108

2
P2R reference P2R reference 94809
Maker reference Maker reference B018108

ROTOR COMPLETE WITH WHEEL LIBRE OEM PIAGGIO 125 FLY, LIBERTY, VESPA GTS, VESPA LX, PRIMAVERA, SPRINT, VESPA-S (ENGINE 3 SOUPAPES ET IGET) 2020 <-B018108

More information

Quantity required : 1

STATOR OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2016 > 2020-680205

3
P2R reference P2R reference 92163
Maker reference Maker reference 680205

STATOR OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2016 > 2020-680205

More information

Quantity required : 1

B018106 - PLAQUETTE

4
P2R reference P2R reference 94807
Maker reference Maker reference B018106

B018106-PLATE

More information

Quantity required : 1

1A003111 - VIS M5X10

5
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 2

B018105 - PLAQUETTE

6
P2R reference P2R reference 94806
Maker reference Maker reference B018105

B018105-PLATE

More information

Quantity required : 1

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

7
P2R reference P2R reference 63674
Maker reference Maker reference 0000975

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

More information

Quantity required : 1

841047 - ECROU

8
P2R reference P2R reference 92941
Maker reference Maker reference 841047

841047-NUT

More information

Quantity required : 1

B018464 - RONDELLE

9
P2R reference P2R reference 94829
Maker reference Maker reference B018464

B018464-WASHER

More information

Quantity required : 1

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

10
P2R reference P2R reference 127168
Maker reference Maker reference 1A003115

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

More information

Quantity required : 2

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

11
P2R reference P2R reference 127167
Maker reference Maker reference 1A003109

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

More information

Quantity required : 2

TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A001379

12
P2R reference P2R reference 75350
Maker reference Maker reference 1A001379

TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A001379

More information

Quantity required : 1

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

13
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 1

NUT FLANGE M8 X 1. 25 COMMON A LA RANGE PIAGGIO-874557

14
P2R reference P2R reference 70536
Maker reference Maker reference 874557

NUT FLANGE M8 X 1. 25 COMMON A LA RANGE PIAGGIO-874557

More information

Quantity required : 1

B015807 - RONDELLE

15
P2R reference P2R reference 94664
Maker reference Maker reference B015807

B015807-WASHER

More information

Quantity required : 1
