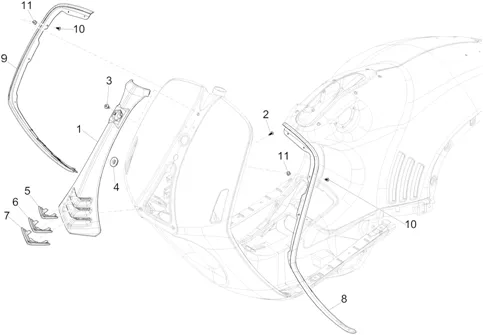

Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015 VESPA

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
676154 - CACHE DIRECTION

1
P2R reference P2R reference 92101
Maker reference Maker reference 676154

676154-COVER STEERING

More information

Quantity required : 1

67615400VR - CACHE-DIRECTION

1
P2R reference P2R reference 127718
Maker reference Maker reference 67615400VR
Replaced by référence Replaced by référence 92101

67615400VR - CACHE-DIRECTION

More information

Quantity required : 1

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

2
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

More information

Quantity required : 2

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

3
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

More information

Quantity required : 1

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

4
P2R reference P2R reference 65850
Maker reference Maker reference 1B000888

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

More information

Quantity required : 1

1B002274 - DECORATIONS

5
P2R reference P2R reference 127459
Maker reference Maker reference 1B002274

1B002274-DECORATIONS

More information

Quantity required : 1

1B002275 - DECORATIONS

6
P2R reference P2R reference 127460
Maker reference Maker reference 1B002275

1B002275-DECORATIONS

More information

Quantity required : 1

1B002276 - DECORATIONS

7
P2R reference P2R reference 127461
Maker reference Maker reference 1B002276

1B002276-DECORATIONS

More information

Quantity required : 1

1B002272 - BORDURE TABLIER GAU.

8
P2R reference P2R reference 127457
Maker reference Maker reference 1B002272

1B002272-BORDURE LEG SHIELD GAU.

More information

Quantity required : 1

1B002273 - BORDURE TABLIER D

9
P2R reference P2R reference 127458
Maker reference Maker reference 1B002273

1B002273-BORDURE LEG SHIELD D

More information

Quantity required : 1

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

10
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 18

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

11
P2R reference P2R reference 65832
Maker reference Maker reference 199190

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

More information

Quantity required : 18
