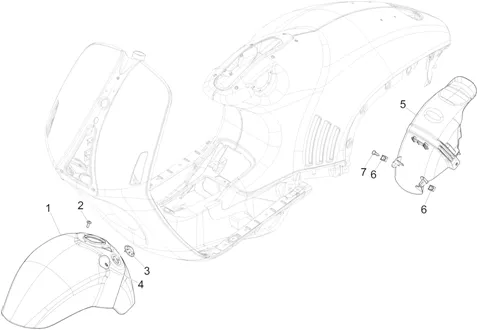

Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015 VESPA

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
Logement roue - Garde boue
Search
1B000759600VR - AILE AVANT. AVEC P.I. (VERNI)

1
P2R reference P2R reference 127303
Maker reference Maker reference 1B000759600VR

1B000759600VR - AILE AVANT. AVEC P.I. (VERNI)

More information

Quantity required : 1

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

2
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

More information

Quantity required : 3

1B002290 - BOUCHON

3
P2R reference P2R reference 127463
Maker reference Maker reference 1B002290

1B002290-CAP

More information

Quantity required : 1

PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351

4
P2R reference P2R reference 65797
Maker reference Maker reference 181351

PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351

More information

Quantity required : 2

676218 - PLAQUE

5
P2R reference P2R reference 92115
Maker reference Maker reference 676218

676218-PLATE

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

7
P2R reference P2R reference 73364
Maker reference Maker reference CM179201

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

More information

Quantity required : 1
