Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

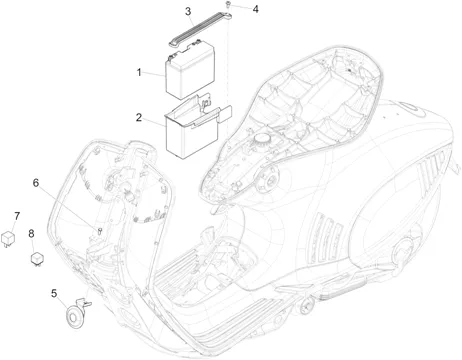

Installation électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/207/Vespa_946_125_4T_3V_ABS_ARMANI_2015_06.05.PNG)
1 |
AP8127619-BATTERY YUASA YT12B-BS More informationQuantity required : 1 |
|||||||||
|
2 |
675538-BRACKET More informationQuantity required : 1 |
|||||||||
|
3 |
675961-BRACKET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
4 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 2 |
|||||||||
|
5 |
CM071819-AVERTISSEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/8/img/67948.jpg)
7 |
RELAIS DE STARTER MOTOR OEM PIAGGIO COMMON A TOUTE LA RANGE-641933 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/5/5/img/92155.jpg)
8 |
RELAIS DE STARTER MOTOR 12V-80A OEM PIAGGIO 530 MP3 2022 >-680172 More informationQuantity required : 1 |
|||||||||
