Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

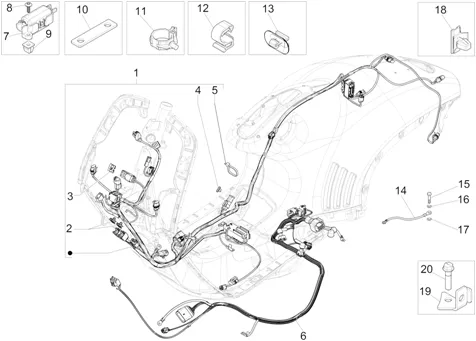

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/207/Vespa_946_125_4T_3V_ABS_ARMANI_2015_06.08.PNG)
1 |
1D000277-HARNESS CABLE More informationQuantity required : 1 |
||||||
|
2 |
584002-CLIP More informationQuantity required : 2 |
||||||
|
3 |
641769-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
4 |
CLIPS CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-639560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 2 |
||||||
|
6 |
1D000059-GR CABLES ENGINE More informationQuantity required : 1 |
||||||
|
7 |
643461-P/FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
8 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
9 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 2 |
||||||
|
10 |
643492-SHUNT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
11 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 2 |
||||||
|
11 |
CM006911-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/1/img/72911.jpg)
11 |
PINCE RETENUE TUYAUX OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
12 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 5 |
||||||
|
13 |
B005629 SPRING More informationQuantity required : 2 |
||||||
|
14 |
1D000144-CABLE More informationQuantity required : 1 |
||||||
|
15 |
641204-BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
16 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
17 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
|
18 |
CLIPS CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-639560 More informationQuantity required : 4 |
||||||
|
19 |
1D000049-PLATE BRACKET SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
20 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
