Vehicle Exploded View - MOTO-GUZZI V85 850 TT E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

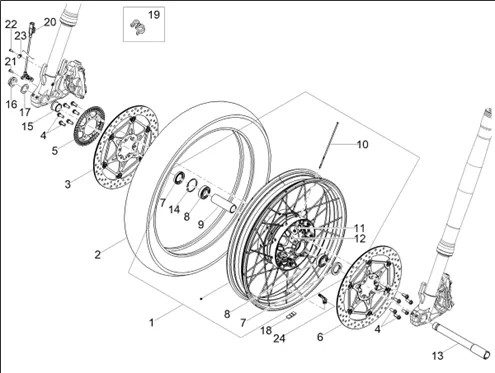

Roues : 05.01 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1220/V85_TT_E5_2024_EMEA_05.01.png)
1 |
2B012118-FRONT WHEEL More informationQuantity required : 1 |
|||||||||
|
2 |
2B006067-TYRE More informationQuantity required : 1 |
|||||||||
|
3 |
FRONT BRAKE DISC - RIGHT "PIAGGIO GENUINE PART" APRILIA 900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO/MOTO-GUZZI 1200 NORGE, STELVIO -B044279 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/2/2/0/4/5/img/222045.JPG)
3 |
BRAKE DISC FRONT RIGHT OEM PIAGGIO APRILIA 900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO/MOTO-GUZZI 1200 NORGE, STELVIO-2B015408 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/6/2/img/139062.jpg)
4 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-2B002416 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/4/1/img/155941.jpg)
5 |
WHEEL PHONIQUE/SENSOR ABS OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-2B004778 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/5/8/img/109058.jpg)
6 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014>2016, 900-1200 DORSODURO 2016>, 900 SHIVER 2017>, 1000 TUONO 2011>/MOTO-GUZZI 1200 NORGE 2010>, STELVIO 2011> -B044280 More informationQuantity required : 1 |
|||||||||
|
7 |
OIL SEAL (30X47X7) OEM PIAGGIO COMMON A LA RANGE-AP8125773 More informationQuantity required : 2 |
|||||||||
|
8 |
AP8125777-BEARING More informationQuantity required : 2 |
|||||||||
|
9 |
978516-SPACER ROULEMENTS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/4/img/172944.jpg)
10 |
SPOKE FRONT WHEEL ORIGNE MOTO GUZZI V85 E5 2021 >-2B007335 More informationQuantity required : 36 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/5/img/172945.jpg)
11 |
NUT DE SPOKE WHEEL OEM MOTO GUZZI V85 E5/660 APRILIA TUAREG 2021 >-2B007846 More informationQuantity required : 36 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/9/8/img/50898.jpg)
12 |
STUD DE WHEEL OEM APRILIA 660 TUAREG, MOTO GUZZI V85TT-AP8150491 More informationQuantity required : 36 |
|||||||||
|
13 |
2B009303-FRONT WHEEL SPINDLE More informationQuantity required : 1 |
|||||||||
|
14 |
CLIPS/CIRCLIPS OEM APRILIA (D47) COMMON A LA RANGE-AP8125842 More informationQuantity required : 1 |
|||||||||
|
15 |
978498-SPACER ESTERNO WHEEL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
16 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
17 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
|||||||||
|
18 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
|||||||||
|
19 |
894704-GUIDE-CABLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
20 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
|||||||||
|
21 |
1C001499-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
22 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957 More informationQuantity required : 1 |
|||||||||
|
23 |
859777-PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
24 |
VALVE TUBELESS OEM MOTO GUZZI COMMON A LA RANGE-GU03617710 More informationQuantity required : 1 |
|||||||||
