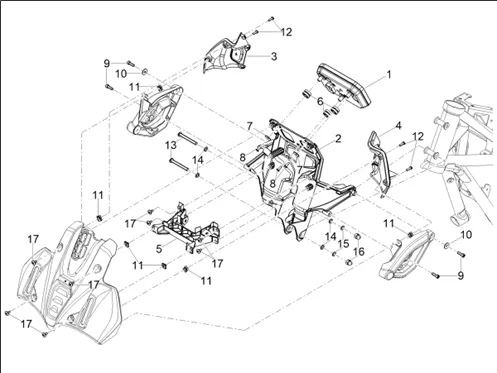

Vehicle Exploded View - MOTO-GUZZI V85 850 TT E5+ 2024 (EMEA) MOTO-GUZZI

Feux - instruments : 08.02 INSTRUMENTS
Instruments
Search
2D000795 - TFT DASHBOARD

1
P2R reference P2R reference 209686
Maker reference Maker reference 2D000795

2D000795-TFT DASHBOARD

More information

Quantity required : 1

2B011768 - FRAME FRONT SIDE

2
P2R reference P2R reference 209680
Maker reference Maker reference 2B011768

2B011768-FRAME FRONT SIDE

More information

Quantity required : 1

2B011784 - FRONT INTERNAL RH COVER

3
P2R reference P2R reference 209687
Maker reference Maker reference 2B011784

2B011784-FRONT INTERNAL RH COVER

More information

Quantity required : 3

2B011785 - FRONT INTERNAL LH COVER

4
P2R reference P2R reference 209688
Maker reference Maker reference 2B011785

2B011785-FRONT INTERNAL LH COVER

More information

Quantity required : 3

2B012006 - SUPPORT BRACKET

5
P2R reference P2R reference 209583
Maker reference Maker reference 2B012006

2B012006-BRACKET BRACKET

More information

Quantity required : 3

RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150

6
P2R reference P2R reference 72271
Maker reference Maker reference AP8220150

RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150

More information

Quantity required : 3

WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255

7
P2R reference P2R reference 71847
Maker reference Maker reference AP8150255

WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255

More information

Quantity required : 3

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

8
P2R reference P2R reference 71897
Maker reference Maker reference AP8150509

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

More information

Quantity required : 2

GU98692318 - VIS M6X18

9
P2R reference P2R reference 133210
Maker reference Maker reference GU98692318

GU98692318-SCREW M6X18

More information

Quantity required : 4

WASHER PLATE (6. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8150378

10
P2R reference P2R reference 71872
Maker reference Maker reference AP8150378

WASHER PLATE (6. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8150378

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

11
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 1

SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965

12
P2R reference P2R reference 139445
Maker reference Maker reference B0167965

SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965

More information

Quantity required : 4

SCREW TORX (8X65) OEM PIAGGIO COMMON A LA RANGE-841023

13
P2R reference P2R reference 92937
Maker reference Maker reference 841023

SCREW TORX (8X65) OEM PIAGGIO COMMON A LA RANGE-841023

More information

Quantity required : 2

WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604

14
P2R reference P2R reference 65422
Maker reference Maker reference 0166045

WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604

More information

Quantity required : 4

WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901

15
P2R reference P2R reference 73448
Maker reference Maker reference GU14615901

WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901

More information

Quantity required : 2

860651-NUT

16
P2R reference P2R reference 69806
Maker reference Maker reference 860651

860651-NUT

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

17
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 8
