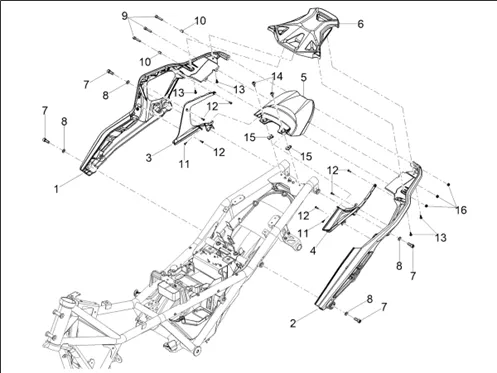

Vehicle Exploded View - MOTO-GUZZI V85 850 TT E5+ 2024 (EMEA) MOTO-GUZZI

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
Carrosserie posterieure
Search
2B011620 - RH PASSENGER HANDLE

1
P2R reference P2R reference 210051
Maker reference Maker reference 2B011620

2B011620-RH PASSENGER HANDLE

More information

Quantity required : 1

2B011621 - LH PASSENGER HANDLE

2
P2R reference P2R reference 210052
Maker reference Maker reference 2B011621

2B011621-LH PASSENGER HANDLE

More information

Quantity required : 1

2B011618 - RH INTERNAL HANDLE COVER

3
P2R reference P2R reference 210053
Maker reference Maker reference 2B011618

2B011618-RH INTERNAL HANDLE COVER

More information

Quantity required : 1

2B011619 - LH INTERNAL HANDLE COVER

4
P2R reference P2R reference 210054
Maker reference Maker reference 2B011619

2B011619-LH INTERNAL HANDLE COVER

More information

Quantity required : 1

2B005354 - COUVERCLE

5
P2R reference P2R reference 156725
Maker reference Maker reference 2B005354

2B005354-COVER

More information

Quantity required : 1

2B011617 - LUGGAGE CARRIER COVER

6
P2R reference P2R reference 210055
Maker reference Maker reference 2B011617

2B011617-LUGGAGE CARRIER COVER

More information

Quantity required : 1

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

7
P2R reference P2R reference 71829
Maker reference Maker reference AP8150169

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

More information

Quantity required : 4

WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208

8
P2R reference P2R reference 73554
Maker reference Maker reference GU95008208

WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208

More information

Quantity required : 4

SCREW THC M6X30 OEM MOTO GUZZI COMMON A LA RANGE-GU98682330

9
P2R reference P2R reference 133184
Maker reference Maker reference GU98682330

SCREW THC M6X30 OEM MOTO GUZZI COMMON A LA RANGE-GU98682330

More information

Quantity required : 3

PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916

10
P2R reference P2R reference 66142
Maker reference Maker reference 277916

PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916

More information

Quantity required : 2

SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141

11
P2R reference P2R reference 195738
Maker reference Maker reference 296141

SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141

More information

Quantity required : 2

1A003444-SCREW

12
P2R reference P2R reference 139388
Maker reference Maker reference 1A003444

1A003444-SCREW

More information

Quantity required : 6

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

13
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 4

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

14
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 2

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

14
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

15
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

GU92630206 - ECROU M6X1

16
P2R reference P2R reference 73548
Maker reference Maker reference GU92630206

GU92630206-NUT M6X1

More information

Quantity required : 3
