Vehicle Exploded View - MOTO-GUZZI V85 850 TT E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

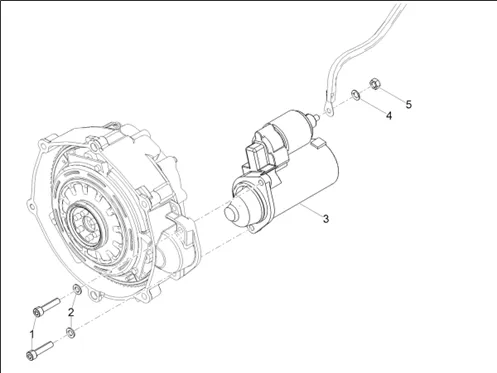

Moteur : 03.29 DÉMARREUR / DÉMARREUR ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1220/V85_TT_E5_2024_EMEA_03.29.png)
1 |
GU98682435-SCREW M8X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
2 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/1/4/8/img/100148.jpg)
3 |
STARTER MOTOR (BOSCH) OEM PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, GRISO, 1400 CALIFORNIA, AUDACE, V7, V9, BELLAGIO, V85 > 2019-97729R More informationQuantity required : 1 |
||||||
|
4 |
GU95129131-WASHER More informationQuantity required : 1 |
||||||
|
5 |
GU92609408-NUT M8X1, 25 More informationQuantity required : 1 |
