Vehicle Exploded View - MOTO-GUZZI V85 850 TT E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

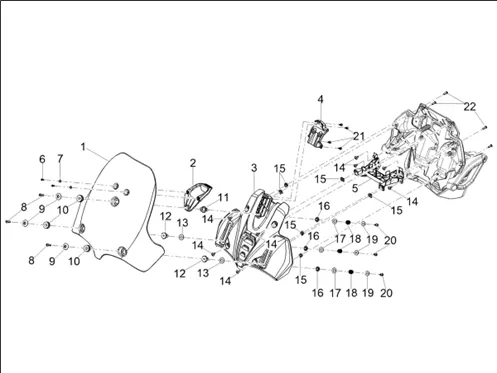

Carrosserie : 02.05 COUPOLE / PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1220/V85_TT_E5_2024_EMEA_02.05.png)
1 |
2B011772-WINDSHIELD More informationQuantity required : 1 |
||||||
|
2 |
2B012344-COMPLETE WINDSCREEN HANDLE More informationQuantity required : 1 |
||||||
|
3 |
2B011774-FRONT FAIRING More informationQuantity required : 1 |
||||||
|
4 |
2B011775-DASHBOARD LID More informationQuantity required : 1 |
||||||
|
5 |
2B012006-BRACKET BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
6 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/6/5/img/101865.jpg)
7 |
WASHER PLATE NYLON (5. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-GU01577830 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 3 |
||||||
|
9 |
2B009747-BUSH SPACER More informationQuantity required : 3 |
||||||
|
9 |
GU32578410 - RUBBER BUFFER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.jpg)
10 |
RUBBER 10X25 OEM PIAGGIO COMMON A LA RANGE-GU32577910 More informationQuantity required : 3 |
||||||
|
11 |
2B011946-WINDSCREEN HANDLE BRACKET PIN More informationQuantity required : 2 |
||||||
|
12 |
2B011947-WINDSCREEN BRACKET PIN More informationQuantity required : 2 |
||||||
|
13 |
2B012687-PTFE WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
14 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
15 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 6 |
||||||
|
16 |
2B011949-SPRING BRACKET BUSH More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/7/5/img/174975.JPG)
17 |
WASHER PLATE 10 2B007292 More informationQuantity required : 3 |
||||||
|
18 |
2B011952-SMALLEY WAVE SPRING More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/2/img/71872.jpg)
19 |
WASHER PLATE (6. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8150378 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
20 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
21 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
22 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965 More informationQuantity required : 4 |
