Vehicle Exploded View - MOTO-GUZZI V85 850 TT E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

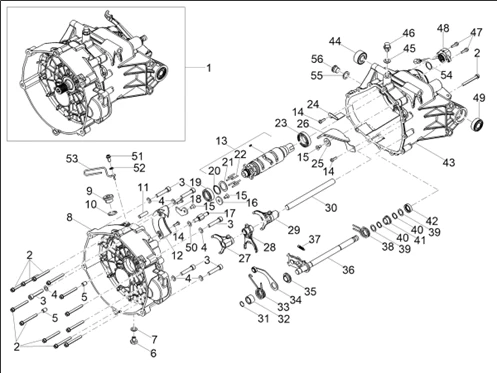

Moteur : 03.17 BOÎTE DE VITESSES / SELECTEUR / DESMODROMIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1220/V85_TT_E5_2024_EMEA_03.17.png)
1 |
|
||||||
|
2 |
2A000591-SCREW More informationQuantity required : 13 |
||||||
|
3 |
GU98680440-SCREW TCEI M8X40 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
4 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 6 |
||||||
|
5 |
GU19002020-BUSH 6, 6X9X13 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
6 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
7 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 1 |
||||||
|
8 |
2A0011325-CLUTCH HOUSING WITH IP More informationQuantity required : 1 |
||||||
|
9 |
CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
10 |
O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203 More informationQuantity required : 1 |
||||||
|
11 |
2B004844-PERNO FILETTATO More informationQuantity required : 1 |
||||||
|
12 |
2A001022-TANK OIL More informationQuantity required : 1 |
||||||
|
13 |
2A001047 GEAR SELECTOR BARREL WITH I. P. More informationQuantity required : 1 |
||||||
|
14 |
2A000241-SCREW SPECIALE TORX TC M5X16 More informationQuantity required : 4 |
||||||
|
15 |
SCREW BTR HEAD FRAISEE (6X8) OEM PIAGGIO COMMON A LA RANGE-B013608 More informationQuantity required : 4 |
||||||
|
16 |
873928-WASHER More informationQuantity required : 1 |
||||||
|
17 |
2A001139 PIN FOR GEAR SELECTOR More informationQuantity required : 1 |
||||||
|
18 |
2A001006-PLATE More informationQuantity required : 1 |
||||||
|
19 |
834764-BALL BEARING More informationQuantity required : 1 |
||||||
|
20 |
GU90271022-BUSH SEEGER More informationQuantity required : 1 |
||||||
|
21 |
GU05235531-CALE More informationQuantity required : 1 |
||||||
|
22 |
2A000938-ROD More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/4/img/69754.jpg)
23 |
BEARING (25X42X9) OEM PIAGGIO COMMON A LA RANGE-857250 More informationQuantity required : 1 |
||||||
|
24 |
2A001018-PLATE More informationQuantity required : 1 |
||||||
|
25 |
2A001013-WASHER More informationQuantity required : 1 |
||||||
|
26 |
2A001025-TANK OIL More informationQuantity required : 1 |
||||||
|
27 |
2A000225-FORCELLA PER ALBERO SECONDARIO More informationQuantity required : 1 |
||||||
|
28 |
2A000832-FOURCHETTE More informationQuantity required : 1 |
||||||
|
29 |
2A000226-FORCHETTA 2A-3A More informationQuantity required : 1 |
||||||
|
30 |
2A000224-ASTA GUIDA FORCELLINI More informationQuantity required : 1 |
||||||
|
31 |
GU90353014-SCREW More informationQuantity required : 1 |
||||||
|
32 |
GU05234230-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/7/3/img/101273.jpg)
33 |
SPRING INDEX PRESELECTEUR OEM MOTO GUZZI CALIFORNIA, GRISO, V7, V9, V85-B064113 More informationQuantity required : 1 |
||||||
|
34 |
B064112-LEVA INDEX COMPLETA More informationQuantity required : 1 |
||||||
|
35 |
GU05238431-BUSH More informationQuantity required : 1 |
||||||
|
36 |
1A018912-PRESELECTEUR COMPLETE More informationQuantity required : 1 |
||||||
|
37 |
GU05238231-SPRING More informationQuantity required : 1 |
||||||
|
38 |
B063956-(*) MOLLA RICHIAMO PRESELETTORE * More informationQuantity required : 1 |
||||||
|
39 |
GU05239330-BUTEE More informationQuantity required : 1 |
||||||
|
40 |
GU90271014-BUSH SEEGER More informationQuantity required : 1 |
||||||
|
41 |
2A000467-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/8/img/132158.jpg)
42 |
OIL SEAL (14X24X7) OEM MOTO GUZZI COMMON A LA RANGE-GU90401424 More informationQuantity required : 1 |
||||||
|
43 |
1A0181805-GEAR BOX HOUSING WITH IP More informationQuantity required : 1 |
||||||
|
44 |
2A000981-BALL BEARING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
45 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/5/2/img/146152.jpg)
46 |
CAP/SCREW OF PURGE BOX OF SPEED OEM MOTO GUZZI V7, V9 2016 >-2A000823 More informationQuantity required : 1 |
||||||
|
47 |
1A003001-SCREW PARKER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/2/9/img/172929.jpg)
48 |
SENSOR OF POSITION DE BOX OF SPEED OEM APRILIA 660 RS, TUONO, TUAREG 2020 >/1000-1100 RSV4 2017 >/MOTO GUZZI V85, V100 2021 >-1A018096R More informationQuantity required : 1 |
||||||
|
49 |
2A000097-CUSCINETTO A SFERE 6202-2RSH/C3 LHT23 More informationQuantity required : 1 |
||||||
|
50 |
2A001050-WASHER PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
51 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
52 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 1 |
||||||
|
53 |
2B001138-PASSACAVO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/9/img/69759.jpg)
54 |
O-RING SENSOR OF POSITION DE BOX OEM APRILIA 660 RS, TUONO, TUAREG 2020 >/1000-1100 RSV4 2017 >/MOTO GUZZI V85, V100 2021 > 857494 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/0/img/66180.jpg)
55 |
GASKET OF CAP DE VIDANGE (D24X16, 3X1, 5) OEM PIAGGIO 350 MP3, X10, BEVERLY/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85/GASKET CANALISATION DE RADIATOR THREE-WHEELER APE DIESEL-287174 More informationQuantity required : 1 |
||||||
|
56 |
1A015068-CAP More informationQuantity required : 1 |
