Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello Wind Tunnel E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

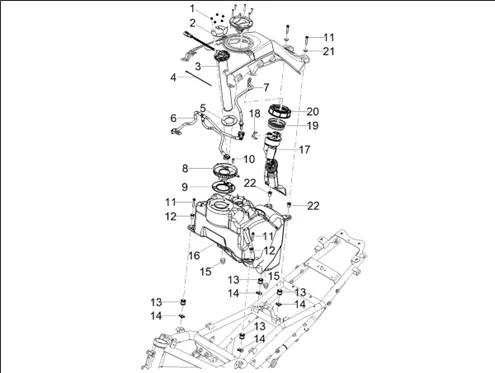

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1263/V100_Mandello_Wind_Tunnel_E5_ABS_2025_EMEA_09.01.png)
1 |
2B008790 SELF LOCK. FLANGE NUT M4 A2-70 DIN 6926 More informationQuantity required : 5 |
||||||
|
2 |
2B010548-FUEL GAUGE LEVEL FIXED FLANGE More informationQuantity required : 1 |
||||||
|
3 |
2B010057-FUEL LEVEL GAUGE More informationQuantity required : 1 |
||||||
|
4 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
5 |
2B010435-GASKET More informationQuantity required : 1 |
||||||
|
6 |
2B010671-INJECTOR SIDE FUEL MANIFOLD More informationQuantity required : 1 |
||||||
|
7 |
2B010658-TANK SIDE FUEL MANIFOLD More informationQuantity required : 1 |
||||||
|
8 |
899107-BAC FUEL More informationQuantity required : 1 |
||||||
|
9 |
899106-GASKET More informationQuantity required : 1 |
||||||
|
10 |
AP8150454-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152136 More informationQuantity required : 4 |
||||||
|
12 |
AP8121421-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
13 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
15 |
BUTEE RUBBER OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144158 More informationQuantity required : 2 |
||||||
|
16 |
2B009556-ASSEMBLY FUEL TANK (EMEA VERSION) More informationQuantity required : 1 |
||||||
|
17 |
2B009489-FUEL PUMP More informationQuantity required : 1 |
||||||
|
18 |
1B004354-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
19 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
20 |
NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
21 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
22 |
2B009638-BUSH More informationQuantity required : 2 |
