Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello Wind Tunnel E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

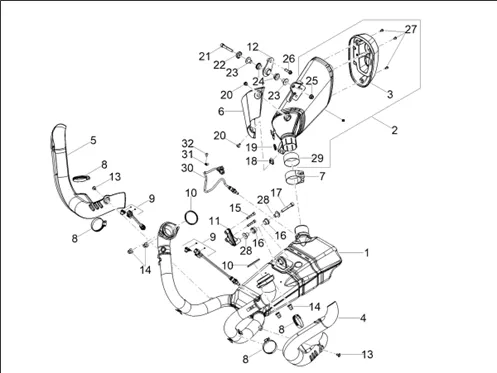

Moteur : 03.33 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1263/V100_Mandello_Wind_Tunnel_E5_ABS_2025_EMEA_03.33.png)
1 |
2B011722-MANIFOLD Ã - CHAP. More informationQuantity required : 1 |
||||||
|
2 |
2B013762-SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
2B009544-REAR COVER More informationQuantity required : 1 |
||||||
|
4 |
2B009905-PROTECTOR DE MANIFOLD More informationQuantity required : 1 |
||||||
|
5 |
2B009906-PROTECTOR DE MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/8/5/9/4/img/208594.jpg)
6 |
PROTECTOR DE SILENCER OEM MOTO GUZZI STELVIO/V100 2023 >-2B011776 More informationQuantity required : 1 |
||||||
|
7 |
2B013070-CLAMP OF FITTING KIT More informationQuantity required : 1 |
||||||
|
8 |
2B011673-CLAMP SERR. TUBE More informationQuantity required : 4 |
||||||
|
9 |
1A024117-SONDE LAMDA More informationQuantity required : 2 |
||||||
|
10 |
2B009392-EXHAUST MANIFOLD GASKET More informationQuantity required : 2 |
||||||
|
11 |
2B009648-MUFFLER BRACKET BRACKET More informationQuantity required : 1 |
||||||
|
12 |
2B011555-PLATE OF FITTING KIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/6/1/img/98061.jpg)
13 |
SCREW FLANGE BTR (6X10) DE SHEET METAL EXHAUST OEM PIAGGIO MOTO-GUZZI 750 V7, 850 V9, V85, 1400 CALIFORNIA, ELDORADO-2B000215 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/0/img/172940.jpg)
14 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-2B007821 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/5/0/img/127950.jpg)
15 |
SCREW BTR (6X35) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B002195 More informationQuantity required : 2 |
||||||
|
16 |
860171-RUBBER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
17 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/6/3/img/174963.jpg)
19 |
BUFFER/RUBBER OEM APRILIA/MOTO GUZZI-2B007247 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/2/img/142492.jpg)
20 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-2B004031 More informationQuantity required : 2 |
||||||
|
21 |
2B004771-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
22 |
BUSH SPACER DE SILENCER OEM APRILIA RSV4-AP8121199 More informationQuantity required : 1 |
||||||
|
23 |
AP8121332-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
24 |
BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
25 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/0/8/img/142408.jpg)
26 |
SCREW FLANGE TH (8X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B002571 More informationQuantity required : 1 |
||||||
|
27 |
2B007535-TORX HEAD SCREW M5X10 A2-70 More informationQuantity required : 3 |
||||||
|
28 |
2B011824-BUSH EN " T " More informationQuantity required : 1 |
||||||
|
29 |
2B011804-WIRE-MESH GASKET More informationQuantity required : 1 |
||||||
|
30 |
1A024934-SONDE LAMDA More informationQuantity required : 1 |
||||||
|
31 |
2B013024-SERRE-CÃ - BLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
32 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 1 |
