Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello Wind Tunnel E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

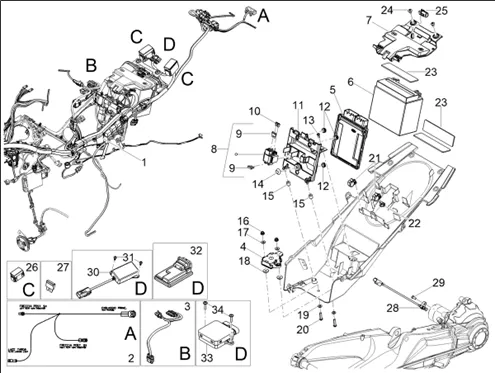

Dispositifs électriques : 11.03 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1263/V100_Mandello_Wind_Tunnel_E5_ABS_2025_EMEA_11.03.png)
1 |
2D000911-WIRING PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
2D000761-REAR LAMP WIRE HARNESS More informationQuantity required : 1 |
||||||
|
3 |
2D000757-FUEL PUMP WIRING HARNESS More informationQuantity required : 1 |
||||||
|
4 |
2D000713-6 AXIS INERTIAL MEASUREMENT UNIT More informationQuantity required : 1 |
||||||
|
5 |
CM3018747-CENTRE ELECTRONIC D'INJECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
6 |
BATTERY 12V 12AH YTX14-BS OEM PIAGGIO WITHOUT SERVICE SUPPLIED WITH PACK ACIDE (LG151XL87XH147)-638733 More informationQuantity required : 1 |
||||||
|
7 |
2B010020-BATTERY COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/3/img/67263.JPG)
8 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
9 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
10 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-581596 More informationQuantity required : 2 |
||||||
|
11 |
2B010019-ECU HOUSING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
12 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
13 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 1 |
||||||
|
14 |
890760-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/4/img/71414.jpg)
15 |
BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/6/img/71776.jpg)
17 |
RUBBER GUIDE FIL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144662 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
18 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
19 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
20 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152128 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
21 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
||||||
|
22 |
1D000129-GASKET More informationQuantity required : 1 |
||||||
|
23 |
AP8144552-GOMMA LAT. APPOGGIO BATTERIA More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
24 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
|
25 |
COVER CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-1D002384 More informationQuantity required : 3 |
||||||
|
26 |
894603-BO? TE A FUSIBLES More informationQuantity required : 2 |
||||||
|
27 |
CM225605-FUSIBLE More informationQuantity required : 4 |
||||||
|
27 |
CM225603-FUSIBILE 3A VIOLA More informationQuantity required : 2 |
||||||
|
27 |
CM225610-FUSIBLE More informationQuantity required : 3 |
||||||
|
27 |
CM225607-FUSIBLE More informationQuantity required : 7 |
||||||
|
27 |
CM225615-FUSIBLE More informationQuantity required : 2 |
||||||
|
27 |
CM225620-FUSIBLE More informationQuantity required : 2 |
||||||
|
28 |
2D000051-SENSOR SPEED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/2/img/71922.jpg)
29 |
SCREW BTR (6X14) OEM PIAGGIO COMMON A LA RANGE-AP8152156 More informationQuantity required : 1 |
||||||
|
30 |
2D000533-CENTRE ELECTRONIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
31 |
SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141 More informationQuantity required : 2 |
||||||
|
32 |
2D000725-M19500 SUSPENSIONS CONTROL UNIT More informationQuantity required : 1 |
||||||
|
33 |
2D000687 - TPMS UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
34 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
