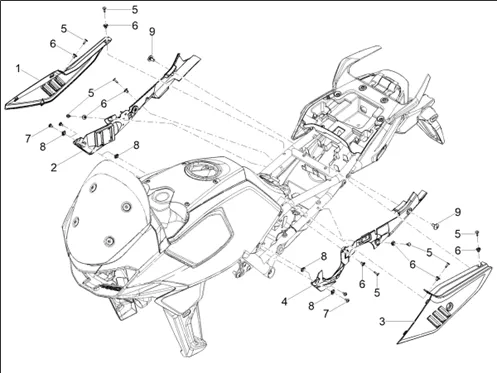

Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello Wind Tunnel E5+ ABS 2025 (EMEA) MOTO-GUZZI

Carrosserie : 02.10 CARROSSERIE CENTRALE
Carrosserie centrale
Search
2B009868 - RH COVER

1
P2R reference P2R reference 203374
Maker reference Maker reference 2B009868

2B009868-RH COVER

More information

Quantity required : 1

2H005274000R02 - FLANC D, ROUGE

1
P2R reference P2R reference 216352
Maker reference Maker reference 2H005274000R02

2H005274000R02-SIDE PANEL D, RED

More information

Quantity required : 1

2B009870 - RH INTERNAL COVER

2
P2R reference P2R reference 203375
Maker reference Maker reference 2B009870

2B009870-RH INTERNAL COVER

More information

Quantity required : 1

2B009869 - LH COVER

3
P2R reference P2R reference 203376
Maker reference Maker reference 2B009869

2B009869-LH COVER

More information

Quantity required : 1

2H005275000R02 - FLANC G, ROUGE

3
P2R reference P2R reference 216353
Maker reference Maker reference 2H005275000R02

2H005275000R02-SIDE PANEL G, RED

More information

Quantity required : 1

2B009871 - LH INTERNAL COVER

4
P2R reference P2R reference 203377
Maker reference Maker reference 2B009871

2B009871-LH INTERNAL COVER

More information

Quantity required : 1

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

5
P2R reference P2R reference 71769
Maker reference Maker reference AP8144563

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

More information

Quantity required : 8

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

6
P2R reference P2R reference 71773
Maker reference Maker reference AP8144616

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

More information

Quantity required : 8

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

7
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

8
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 4

2B009428 - FAIRING TAIL BOLT

9
P2R reference P2R reference 184740
Maker reference Maker reference 2B009428

2B009428 FAIRING TAIL BOLT

More information

Quantity required : 2
