Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello Wind Tunnel E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

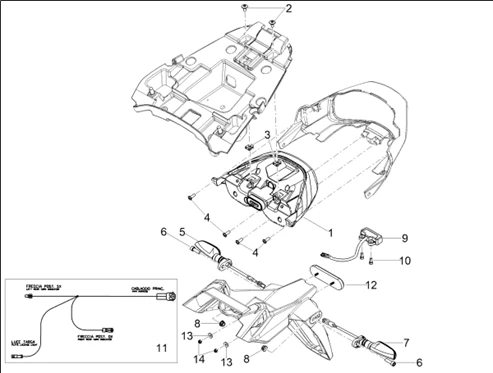

Feux - instruments : 08.03 ECLAIRAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1263/V100_Mandello_Wind_Tunnel_E5_ABS_2025_EMEA_08.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/8/8/9/3/img/208893.jpg)
1 |
LAMP REAR OEM MOTO GUZZI V100 2022 >, STELVIO 2024 >-2B013236 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
2 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
3 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
4 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/0/5/0/img/159050.jpg)
5 |
REAR RIGHT INDICATOR OEM MOTO GUZZI V7, V9, V100, STELVIO 2019 >-2B013046R More informationQuantity required : 1 |
||||||
6 |
GU98612320-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/0/5/1/img/159051.jpg)
7 |
REAR LEFT INDICATOR OEM MOTO GUZZI V7, V9, V100, STELVIO 2019 >-2B013045R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
9 |
2D000284-LUMIERE PLATE IMMATR. More informationQuantity required : 1 |
||||||
|
10 |
2B002146-SCREW More informationQuantity required : 2 |
||||||
|
11 |
2D000761-REAR LAMP WIRE HARNESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
12 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
13 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150501 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
