Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello Wind Tunnel E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

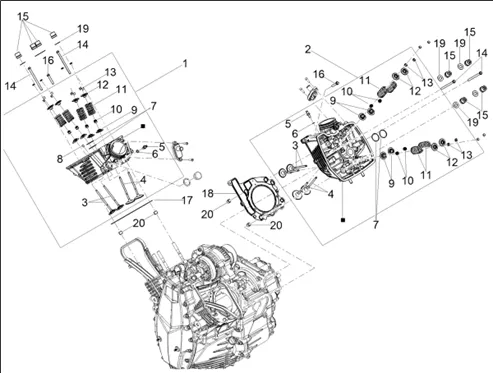

Moteur : 03.10 CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1263/V100_Mandello_Wind_Tunnel_E5_ABS_2025_EMEA_03.10.png)
1 |
1A025896-TÃ - TE D. GUIDES DESOUPAPES More informationQuantity required : 1 |
||||||
|
2 |
1A025895-TÃ - TE G. GUIDES DESOUPAPES More informationQuantity required : 1 |
||||||
|
3 |
1A023877-VALVE D'Ã - CHAPPEMENT More informationQuantity required : 4 |
||||||
|
4 |
1A021714-INLET VALVE More informationQuantity required : 4 |
||||||
|
5 |
1A025386-FITTING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
6 |
WASHER PLATE (6X10, 5X1) OEM PIAGGIO COMMON A LA RANGE-847239 More informationQuantity required : 2 |
||||||
|
7 |
B019103-O-RING (26. 7X1. 78) More informationQuantity required : 4 |
||||||
|
8 |
1A022588-CALIBRATED DOWEL More informationQuantity required : 1 |
||||||
|
9 |
1A020032-BOTTOM CUP More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
10 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 8 |
||||||
|
11 |
1A008434-EXTERNAL INLET VALVE SPRING More informationQuantity required : 8 |
||||||
|
12 |
1A021403-UPPER CUP More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/8/5/1/3/img/208513.JPG)
13 |
HALF CLAVETTE DE VALVE OEM APRILIA 660 RS/TUAREG/TUONO-1A021968 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/2/img/72722.jpg)
14 |
SCREW TH FLANGE (6X90) OEM PIAGGIO COMMON A LA RANGE-B016776 More informationQuantity required : 4 |
||||||
|
15 |
1A023219-HEX. FLANGED NUT More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
16 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 2 |
||||||
|
17 |
1A022909-CYLINDER HEAD GASKET RIGHT More informationQuantity required : 1 |
||||||
|
17 |
1A022910-CYLINDER HEAD GASKET RIGHT More informationQuantity required : 1 |
||||||
|
17 |
1A022911-CYLINDER HEAD GASKET RIGHY More informationQuantity required : 1 |
||||||
|
17 |
1A023907-CYLINDER HEAD GASKET RIGHY More informationQuantity required : 1 |
||||||
|
18 |
1A022906-CYLINDER HEAD GASKET LEFT More informationQuantity required : 1 |
||||||
|
18 |
1A022907-CYLINDER HEAD GASKET LEFT More informationQuantity required : 1 |
||||||
|
18 |
1A022908-CYLINDER HEAD GASKET LEFT More informationQuantity required : 1 |
||||||
|
18 |
1A023906-CYLINDER HEAD GASKET LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/7/5/img/174975.JPG)
19 |
WASHER PLATE 10 2B007292 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
20 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 4 |
