Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

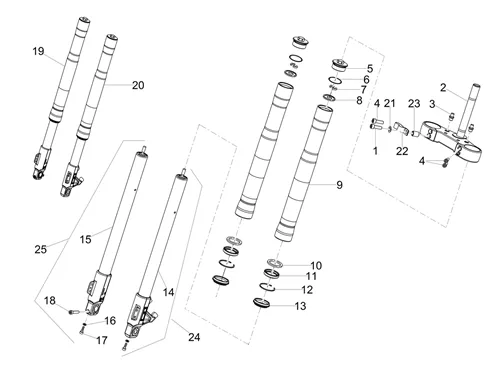

Suspensions : 04.070 FOURCHE AV. MING XING
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/863/Tuono_125_4T_E4_ABS_2020_(EMEA)_04.070.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
1 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 1 |
||||||
2 |
B044047-PLATE INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/1/4/img/72814.jpg)
3 |
BUTEE DE FORK OEM APRILIA 50-125 RS 2011 >-B044048 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
4 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 3 |
||||||
|
5 |
B044049-NUT FLANGE More informationQuantity required : 5 |
||||||
|
6 |
B044050-O-RING More informationQuantity required : 2 |
||||||
|
7 |
B044051-WASHER More informationQuantity required : 4 |
||||||
|
8 |
B044052-WASHER More informationQuantity required : 2 |
||||||
|
9 |
B044053-PROTECTOR More informationQuantity required : 2 |
||||||
|
10 |
B044054-WASHER SPECIALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/2/1/img/72821.jpg)
11 |
OIL SEAL DE FORK (MING-XING) OEM PIAGGIO APRILIA 50-125 RS 2011 >-B044055 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/2/2/img/72822.jpg)
12 |
CLIPS/CIRCLIPS DE FORK FRONT MING XING OEM APRILIA 50-125 RS 2006 >-B044056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/2/3/img/72823.jpg)
13 |
PROTECTOR-POUSSIERE FORK MING XING OEM APRILIA RS 50 2011 > 2019, RS 125 2006 >-B044057 More informationQuantity required : 2 |
||||||
|
14 |
2B005150-ROD G More informationQuantity required : 1 |
||||||
|
15 |
2B005149-ROD RIGHT More informationQuantity required : 1 |
||||||
|
16 |
B044060-WASHER ELASTIC More informationQuantity required : 2 |
||||||
|
17 |
AP8150196-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
18 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/2/8/img/72828.JPG)
19 |
B044062-ROD LEFT More informationQuantity required : 1 |
||||||
|
20 |
2B002954-ROD WITH FOND GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
21 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
|
22 |
2B004075-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/1/2/img/57012.JPG)
23 |
AP8221171-SPACER More informationQuantity required : 1 |
||||||
|
24 |
2B005150-ROD G More informationQuantity required : 1 |
||||||
|
25 |
2B005149-ROD RIGHT More informationQuantity required : 1 |
