Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

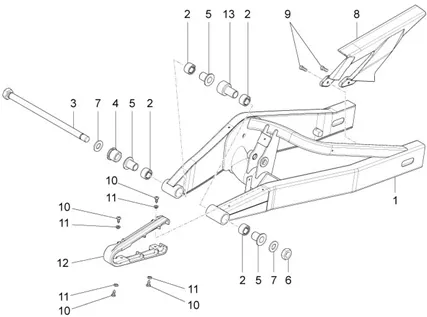

Chassis : 01.050 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/863/Tuono_125_4T_E4_ABS_2020_(EMEA)_01.050.png)
1 |
89947400XNL-FORK AR., BLACK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
2 |
CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY-600161 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/3/1/img/64231.jpg)
3 |
00H00305411-SHAFT OF OEM MOPED SWINGARM * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/3/1/img/70131.jpg)
4 |
SCREW SPECIALE ARM OCSILLANT OEM APRILIA 50-125 RS 2011 >-865615 More informationQuantity required : 1 |
||||||
|
5 |
866753-SPACER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
6 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
7 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/0/4/img/127204.jpg)
8 |
CASING DE CHAIN OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >-B043207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/9/img/63709.jpg)
9 |
00016041301-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
10 |
SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
11 |
WASHER T (5X14) DE SHEET METAL EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-826118 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/7/9/img/139079.jpg)
12 |
PATIN DE CHAIN OEM PIAGGIO APRILIA 125 RS 2011 >, 50-125 TUONO 2017 >-2B003049 More informationQuantity required : 1 |
||||||
|
13 |
866754-SPACER G More informationQuantity required : 1 |
