Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

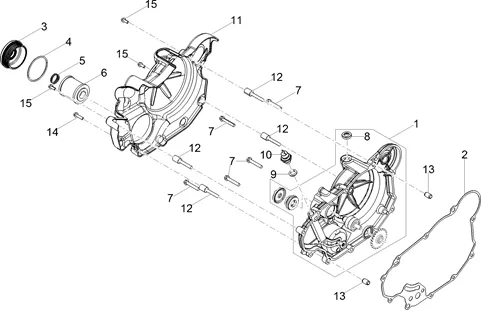

Moteur : 03.220 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/863/Tuono_125_4T_E4_ABS_2020_(EMEA)_03.220.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/4/6/9/img/145469.jpg)
1 |
COVER CLUTCH OEM APRILIA 125 RS, 50-125 TUONO 2017 >-1A005889 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/1/img/70681.jpg)
2 |
GASKET OF COVER CLUTCH OEM PIAGGIO APRILIA 125 RX 2018 >, SX 2018 >, RS 2011 >, TUONO 2017 >-878241 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/1/9/img/69619.jpg)
3 |
COVER DE FILTER AHUILE OEM PIAGGIO 350 BEVERLY 2013 < 2014/APRILIA 125 RS, RX, SX 2020 <, 450-550 RXV, SXV-851295 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/0/img/72620.jpg)
4 |
O-RING COVER OIL FILTER OEM PIAGGIO 350 BEVERLY, X10/APRILIA125 RS, RX, SX-AP9150355 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/8/img/72618.jpg)
5 |
SPRING DE MAINTIENT DE OIL FILTER OEM PIAGGIO APRILIA 125 RS, TUONO, RX, SX, 450 RXV, SXV-AP9150167 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/8/img/70518.jpg)
6 |
OIL FILTER MOTO OEM PIAGGIO APRILIA 125 RS4 2011 >, TUONO 2017 >, SX 2018 >, RX 2018 >-874081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
7 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
8 |
OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/1/img/72621.jpg)
9 |
WASHER (10, 5X17X1, 5) OEM PIAGGIO COMMON A LA RANGE-AP9150472 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
10 |
SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R More informationQuantity required : 1 |
||||||
11 |
1A009350-COVER More informationQuantity required : 1 |
||||||
|
12 |
1A009243-SCREW SPECIALE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
13 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
14 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
15 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 3 |
