Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

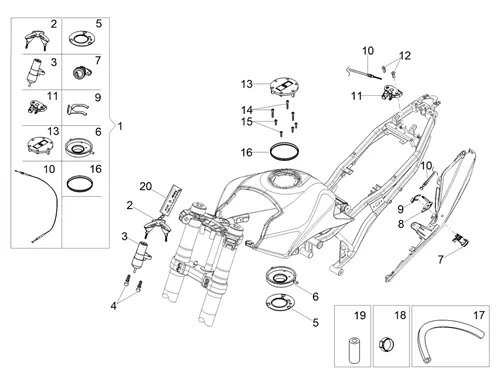

Carrosserie : 02.170 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/863/Tuono_125_4T_E4_ABS_2020_(EMEA)_02.170.png)
1 |
2B003717 - KIT SERRURES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
2 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 50-125 RS, SX, RX-AP8140710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/2/6/img/43226.jpg)
3 |
IGNITION SWITCH/LOCK OEM PIAGGIO APRILIA 50-125 RS, TUONO 2013 >-899542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/0/img/71930.JPG)
4 |
SCREW A ARRACHEMENT (M8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152229 More informationQuantity required : 4 |
||||||
|
5 |
899106-GASKET More informationQuantity required : 1 |
||||||
|
6 |
899107-BAC FUEL More informationQuantity required : 1 |
||||||
|
7 |
2B003729-LOCK SEAT More informationQuantity required : 1 |
||||||
|
8 |
978415-PIASTRINA BRACKET CABLE More informationQuantity required : 1 |
||||||
|
9 |
2B003727-SPRING A FORK More informationQuantity required : 1 |
||||||
|
10 |
2B003726-CABLE LOCK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/2/7/img/43227.jpg)
11 |
MECANISME/LOCK DE SEAT OEM PIAGGIO APRILIA 50-125 RS 2011 >/MOTO-GUZZI 850 V85, V9-899543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/6/img/70516.jpg)
12 |
SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-874037 More informationQuantity required : 2 |
||||||
|
13 |
896487 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
14 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453 More informationQuantity required : 3 |
||||||
|
15 |
AP8150454-SCREW More informationQuantity required : 4 |
||||||
|
16 |
899105-GASKET CAP More informationQuantity required : 1 |
||||||
|
17 |
AP8220402-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
18 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 1 |
||||||
|
19 |
AP8144298-CAP PURGE More informationQuantity required : 1 |
||||||
|
20 |
2B004211-TROUSSEAUX More informationQuantity required : 1 |
